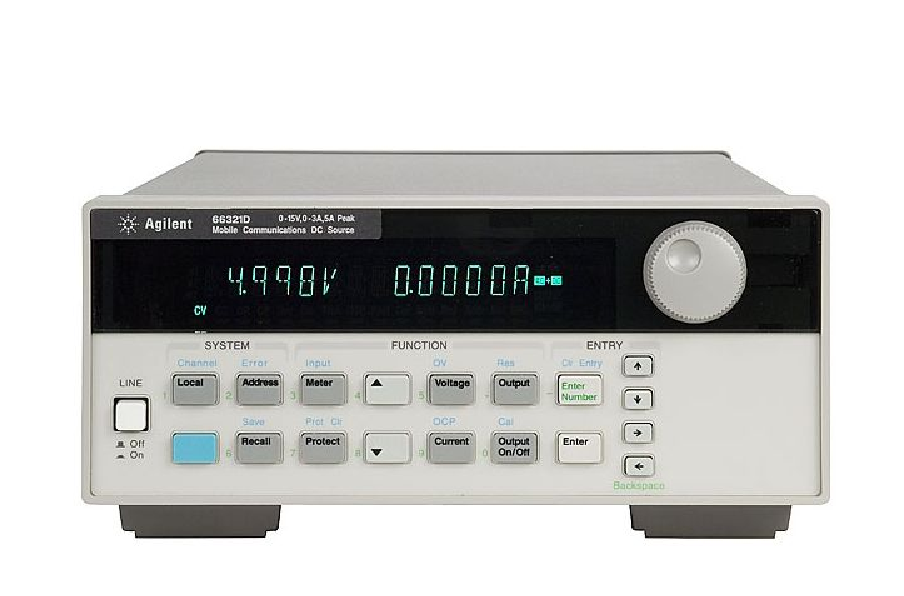

KEYSIGHT 66321D Mobile Comm DC Source w/ Battery Emulation, DVM (single output, 15V, 3A)
Manufacturer: KEYSIGHT Model: 66321D Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Number of output: 1
Output Ratings
Voltage: 0 to 15 V
Current: 0 to 3 A3A
Peak Current for up to 7 ms: 5 A
Programming accuracy at 25°C: ±5°C (% of setting plus fixed)
Voltage: 10 mV
+ Current: 1.33 mA
DC Readback Accuracy
Voltage: 0.03% + 5 mV
Current (-3 A to + 5 A): 0.2% + 0.5 mA
Current (-1 A to + 1 A): 0.1% + 0.2mA
Current (-20 mA to + 20 mA): 0.1% + 2.5 µA
Transient Response
40 mV drop, <20 µs transient response time
Voltmeter input:
Input range: -25 to +25 Vdc
AC + DC readback accuracy (at 25°C ±5°C) with DC plus a sinewave input > 25 mV rms: 1% + 5 mV (60kHz to 10kHz)
Accessories:
E3663AC Support rails for Keysight rack cabinets
14565B Device Characterization with Battery Drain Analysis & Test Automation
14565U Device Characterization Software Upgrade (provides upgrade from 14565A to 14565B Software)
