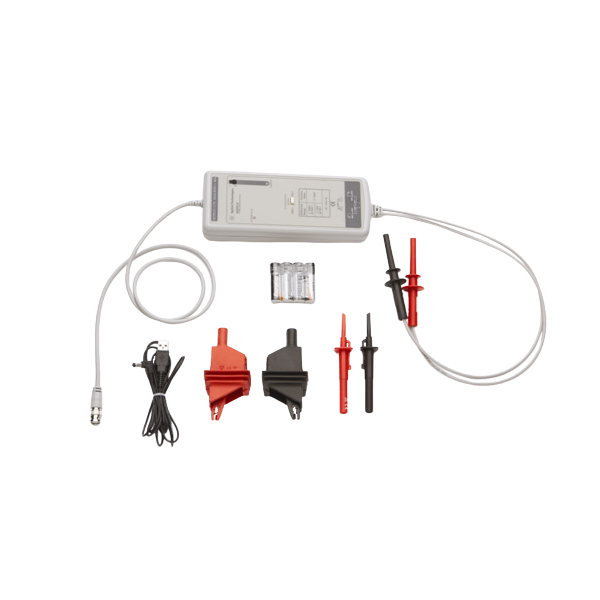

KEYSIGHT N2891A High-Voltage Differential Probes (70 MHz, ± 7000V)
Manufacturer: KEYSIGHT Model: N2891A - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Specifications:
Bandwidth: 70 MHz
Attenuation ratio: 100:1 / 1000:1
Input R//C (each input to ground): 50 Mohm // 7 pF
Input R//C (between inputs): 100 Mohm //5 pF
Max differential operating voltage (DC+PeakAC or RMS)
± 7000 V or 5000 Vrms at 1000:1
± 700 V or 700 Vrms at 100:1
Max common mode operating voltage (DC+PeakAC or RMS)
± 7000 V or 5000 Vrms at 1000:1
± 7000 V or 5000 Vrms at 100:1
Max nondestructive voltage
± 7000 V (DC + Peak AC)
± 5000 Vrms at 1000:1 and 100:1 in differential and common mode (Main Isolated)
Output maximum voltage range: 7 V into 1 Mohm (1000:1)
