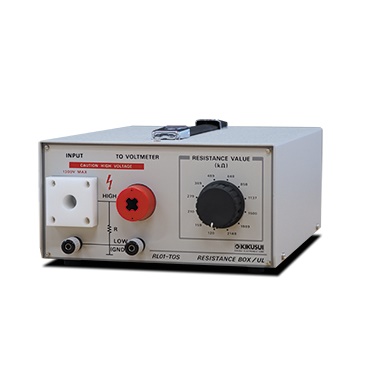

KIKUSUI RL01-TOS UL Resistance Load
Manufacturer: KIKUSUI Model: RL01-TOS Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Resistors: 120, 159, 210, 279, 369, 489, 648, 858, 1,137, 1,500, 1,989 and 2,148 kΩ
Resistance Accuracy: +1 %, -0 % of nominal value when set to 120 kΩ, ±1 % of nominal value when set to other values
Maximum Operating Voltage: 1300 V (continuous rating)
Maximum Overload Voltage: 1400 V for 5 seconds (application may not be repeated within 1 minute)
Dimensions (MAX) 200[7.87 inch]W × 100[3.94 inch]H × 260[10.24 inch]D mm (210[8.27 inch]W × 120[4.72 inch]H × 295[11.61 inch]D mm)
Weight: approx. 2.6 kg(approx. 5.73 lbs)
Accessories:
TL04-TOS high-voltage test lead: 2
TL05-TOS high-voltage test lead: 1
