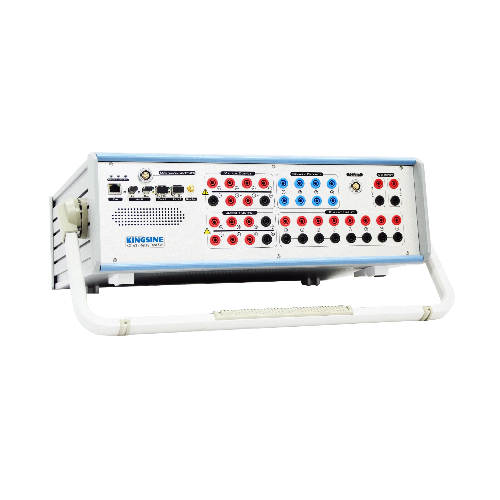

Kingsine K3163i Intelligent Protection Relay Test Set (6 x 35A / 3 x 70A, 4 x 310V)

Voltage Outputs:

Output Range & Power:

+ 4×310 V ac (L-N): 124 VA max each

+ 3×350 V dc (L-N): 140 W max each

Accuracy: ±2mV @ <2V ac

                 <0.015%Rd+0.005Rg Typ. @ 2~310V ac

                 <0.04%Rd+0.01Rg Guar. @ 2~310V ac

                 ±10mV @ <5V dc

                 ±0.5% @ ≥5V dc

Voltage Range

+ Range I : 30V

+ Range II : 310V

+ Automatic Range

DC Offset: <20mV Typ./ <100mV Guar

Resolution: 1mV

Distortion: <0.015%Typ. / <0.05% Guar.

Current Outputs

Output Range & Power:

+ 6×35A ac (L-N): 480 VA max each

+ 3×70A ac (2L-N): 850 VA max each

+ 1×100A ac (6L-N): 1200 VA max

+ 3×20A dc (L-N): 300W max each

Accuracy: ±1mA @ <0.5A ac

                  <0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac

                  <0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac

                 ±5mA @ <1A dc

                 ±0.5% @ ≥1A dc

Current Range:

+ Range I: 3A

+ Range II: 35A

+ Automatic Range DC Offset: <3mA Typ./ <10mA Guar

Resolution: 1mA

Distortion: <0.025%Typ. / <0.07% Guar.

Low-Level Output

Quantity: 13 Channels, 16 pin combination female socket

Voltage Outputs Range: AC 0~8V, DC 0~10V

Current Outputs Range: Nominal 2mA, 10mA max transient

Output Power: ≥0.5VA

Accuracy: (0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar.

                        (0.8~8 Vrms): <0.02% Typ. / <0.05% Guar.

Resolution: 0.25mV

Distortion (THD%): <0.05% Typ. / <0.1% Guar.

Frequency Range: 0~3000KHz

DC Offset: <0.15mV Typ. / <1.5mV Guar.

Frequency & Phase Angle

Frequency Range: DC~1KHz, 3KHz transient

Frequency Accuracy: ±0.5ppm

Frequency Resolution: 0.001 Hz

Phase Range: -360°~360°

Phase Accuracy: <0.02° Typ. / <0.1° Guar. 50/60Hz

Phase Resolution: 0.001°

Aux. DC Voltage Source (Battery simulator)

Range 0~350V @ 140W max

Accuracy 0.5%Rg Guar.

Binary Input

Quantity 8pairs

Type wet/dry, measurement

Threshold 10~600Vdc or potential free, Programmable

Time resolution 10us

Sampling Rate 10KHz

Debounce time 0~25ms (Software Controlled)

Time range Infinite

Time errors ±1ms @ ≤1s, ±0.1% @ >1s

Galvanic isolation 4 isolated with each 2 pairs

Binary Output (Relay Type)

Quantity 4pairs

Type Potential free relay contacts, software controlled

Break Capacity AC Vmax: 400Vac / Imax:8A / Pmax:2500VA

Break Capacity DC Vmax: 300Vdc / Imax:5A / Pmax:150W

Binary Output (Semiconductor Type)

Quantity 4pairs

Type: Open-collector, Combination type female

Break Capacity DC 5~15Vdc / 5mA, 10mA max

AC not permit

Response time: 100us

Synchronization

Synchronization Mode　 GPS, SMA type antenna connector

IRIG-B (Optical fiber, FT3 type)

Power supply & Environment

Nominal Input Voltage 100~240Vac

Permissible Input Voltage 85~260Vac, 125~350VDC

Nominal Frequency 50/60Hz

Permissible Frequency 45Hz~65Hz

Power Consumption 1500 VA max

Connection Type Standard AC socket 60320

Operating Temperature -10℃~55℃

Storage Temperature -20℃~70℃

Humidity <95%RH, non-condensing

Others

PC Connection RJ45 Ethernet, 10/100M

Grounding Terminal 4mm banana socket

Weight 17.5 Kg

Dimensions(W x D x H) 468×375×164(mm)
