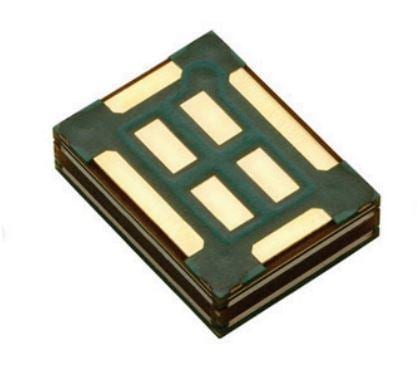

Knowles SPK0641HT4H-1-7 High Performance Silicon Microphone MICROPHONE HF, MEMS
Manufacturer: Knowles Model: SPK0641HT4H-1-7 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Shape: Rectangular
Width: 3 mm
Length: 4 mm
Port Type: Top
Dimensions: 4 mm x 3 mm x 1 mm
Technology: MEMS
Output Type: Digital, PDM
Sensitivity: - 26 dBFS
Mounting Style: SMD/SMT
Frequency Range: 20 Hz to 20 kHz, 350 kHz to 800 kHz, 1 MHz to 4.8 MHz
Termination Style: Solder
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.6 V
Directional Properties: Omnidirectional
Operating Supply Current: 270 uA, 700 uA
Operating Supply Voltage: 1.8 V
SNR - Signal to Noise Ratio: 64.5 dBA
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
