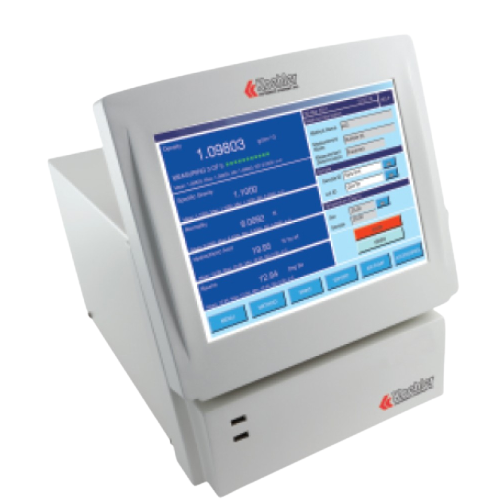

Koehler K86200 Automatic Density Meter (0.00005 g/cm3; 0.03°C)

The test method covers the determination of the density or relative density of crude oils, petroleum distillates and viscous oils that can be handled in a normal fashion as liquids at test temperatures between 15 and 35°C.

Specifications

- Conforms to the specifications of:

ASTM D1250, D4052, D5002, D5931; ISO 12185; DIN 51757; IP 365

- Measurement ranges: Density: 0 to 3g/cm3

                                      Temperature: 0°C to 95°C

                                      Pressure: 0 to 10 bars

                                      Measurement modes: Continuous, Single, Multiple

- Accuracy: Density: 0.00005g/cm3

                   Temperature: 0.03°C

- Repeatability: Density: 0.00001g/cm3

                         Temperature: 0.01°C

- Resolution: Density: 0.00001g/cm3

                     Temperature: 0.01°C

- Minimum sample volume: 1ml, approximately

- Wetted materials: Borosilicate glass, Teflon (PTFE, ECTFE)

Electrical requirements: 85 to 260 VAC; 48 to 62Hz 150-200 Watts

Dimensions

- lxwxh, cm: 91.44cm (L) x 48.26cm (W) x 45.72cm (H)

- Net weight: 40 lbs (18.1kg)

Shipping information

- Shipping weight: 50 lbs (22.7kg)

- Dimensions: 25x18x22 in. (63.5x45.7x55.9cm)
