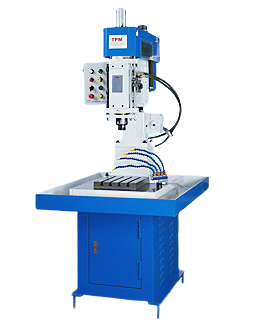

H-9150 Hydraulics Table Drilling machine
Manufacturer: KTK Model: H-9150 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Specifications:
Maximum drilling diameter: 35 mm
Spindle cone: MT4/NT40
Major axis travel: 150 mm
Spindle speed (3 levels): 85/170/250V/P
Stepless speed: 420-1670 V / P
Table size: 600 x 800 mm
Head Diameter: 115 mm
K / C from spindle to table: 350-700 mm
Motor power: 3 HP
Hydraulic pressure: 20 kg/cm2
Overall Height: 2100mm
Weight: 700 kg
