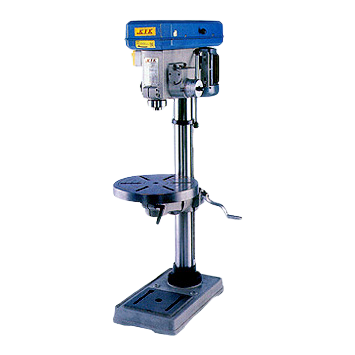

LG-250 Automatic Table drilling machine
Manufacturer: KTK Model: LG-250 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specifications:
Automatic feeding embryos by transmission (one person can operate multiple machines with a time)
Ability Drilling capacity: 25 mm
Spindle cone: M.T.3
Major axis travel: 140mm
Spindle speed: 255-2020 V / P
The number of speed levels: 6 levels
Head Diameter: 102mm
Table diameter: 420 mm
Dimensions with stand: 360 * 600mm
Item distance from spindle to table: 630 mm
Item distance from spindle to base: 930 mm
Motor power: 2HP
Weight: 220 Kg
Machine Height: 1600mm
