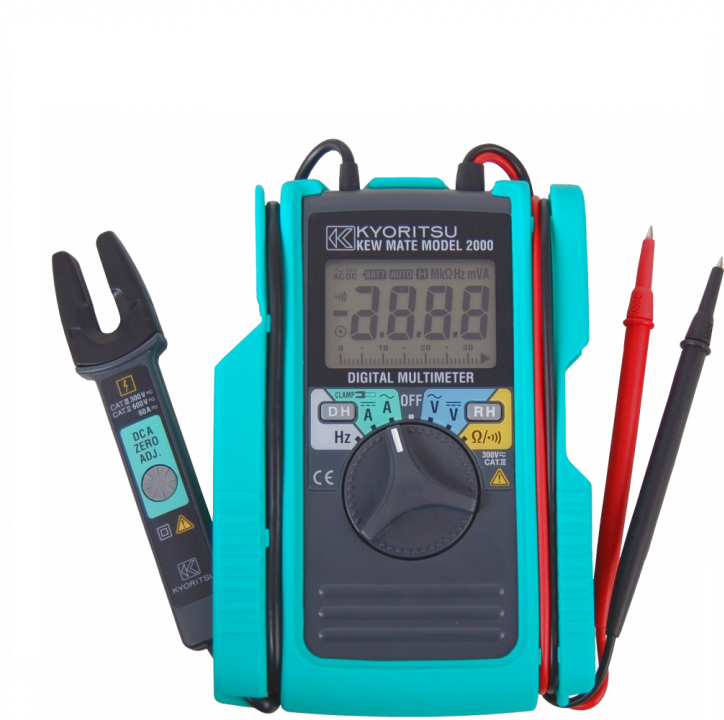

KYORITSU 2000 Multimeter Kyoritsu

Name: KYORITSU 2000 Multimeter Kyoritsu
Brand: KYORITSU
SKU: KYORITSU2000
Availability: OutOfStock

SWITCH TO MODEL 2000A

DCV:340mV/3.4/34/340/600V

ACV:3.4/34/340/600V

A60ADC

A60AAC

Ω:340Ω/3.4/34/340kΩ/3.4/34MΩ

Continuitybuzzer:30Ω

Frequency (ACA):3.4/10kHz

(ACV)3.4/34/300kHz

Grip:φ6mm

Source:R03(DC1.5V)× 2

Size:128 (L)×87 (W)× 24(D)mm

Weight:210gapprox.

Accessories:R03Battery(DC1.5V)× 2,Manuals

Details

•	Capable of measuring AC and DC currents up to 60A with OPEN CLAMP SENSOR.
•	3400 counts with bargraph display.
•	Pocket size and heavy duty design.

How to put test lead in.

DC V	340mV/3.4/34/340/600V (Input Impedance: 10MΩ) ±1.5%rdg±4dgt
AC V	3.4/34/340/600V (Input Impedance: 10MΩ) ±1.5%rdg±5dgt [50~400Hz]
DC A	60A ±2%rdg±5dgt
AC A	60A ±2%rdg±5dgt (50/60Hz)
Ω	340Ω/3.4/34/340kΩ/3.4/34MΩ ±1%rdg±3dgt (0~340kΩ) ±5%rdg±5dgt (3.4MΩ) ±15%rdg±5dgt (34MΩ)
Continuity buzzer	Buzzer sounds below 30±10Ω (Continuity buzzer works on 340Ω range only)
Frequency	(AC A) 3.4/10kHz ±0.1%rdg±1dgt (AC V) 3.4/34/300kHz ±0.1%rdg±1dgt (Input sensitivity Current: more than 15A, Voltage: more than 30V)
Conductor size	φ6mm max.
Withstand Voltage	3700V AC for 1 minute
Applicable standards	IEC 61010-1 CAT.III 300V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1
Power Source	R03 (DC 1.5V) × 2 * Continuous measuring time: approx. 45 hours (Auto power save: approx. 10 minutes)
Dimensions	128(L) × 87(W) × 24(D)mm
Weight	210g approx.
Accessories	R03 (DC 1.5V) × 2, Instruction Manual
Optional	9107 (Carrying case [Soft])
