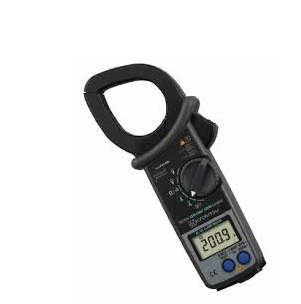

KYORITSU 2009R AC/DC Digital Clamp Meter
Manufacturer: KYORITSU Model: 2009R Origin: Thailand - Contact
- In stock: 15 Unit
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
| AC A |
| ||||||||||||||||||||
| DC A | 400.0/2000A ±1.3%rdg±2dgt | ||||||||||||||||||||
| AC V |
| ||||||||||||||||||||
| DC V | 40.00/400.0/1000V±1.0%rdg±2dgt | ||||||||||||||||||||
| Ω | 400.0/4000Ω|±1.5%rdg±2dgt (Electronic protection (no fuse) up to 600V) | ||||||||||||||||||||
| Continuity buzzer | Buzzer sounds below 20Ω | ||||||||||||||||||||
| Hz | 10.0 ~ 4000Hz±1.5%rdg±5dgt (Input sensitivity Current: more than 40AVoltage: more than 10V) | ||||||||||||||||||||
| Output |
| ||||||||||||||||||||
| Withstand voltage | 6880V AC for 5 seconds | ||||||||||||||||||||
| Conductor size | Ø55mm max. | ||||||||||||||||||||
| Applicable standards | IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1 | ||||||||||||||||||||
| Power Source | R6P (1.5V) × 2 | ||||||||||||||||||||
| Dimensions | 250(L) × 105(W) × 49(D)mm | ||||||||||||||||||||
| Weight | Approx. 540g (including batteries) | ||||||||||||||||||||
| Accessories | 7107A (Test leads), 8201 (Output plug), 9094 (Carrying case) R6P (AA) (1.5V) × 2, Instruction Manual | ||||||||||||||||||||
| Optional | 8008 (Multi-Tran) (AC only), 7014 (Output cord) | ||||||||||||||||||||
