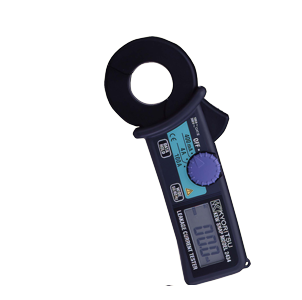

KYORITSU 2434 Leakage Clamp Meter
Manufacturer: KYORITSU Model: 2434 Origin: Japan - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
| AC A (50/60Hz) | 400mA/4/100A ±2%rdg±4dgt |
| AC A (WIDE) | 400mA/4/100A |±2%rdg±4dgt [50/60Hz] |±3%rdg±5dgt [40~400Hz] |
| Conductor Size | Ø28mm max. |
| Safety Standard | IEC 61010-1 CAT.III 300V IEC 61010-2-032 |
| Effect of External Stray Magnetic Field Ø15mm 100A | 20mA AC max. |
| Frequency Response | 40~400Hz |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | R03 (AAA) (1.5V) × 2 |
| Dimensions | 169(L) × 75(W) × 40(D)mm |
| Weight | 220g approx. |
| Accessories | Carrying Case R03 × 2 Instruction Manual |
| Optional | 8008 (Multi-Tran)* |
