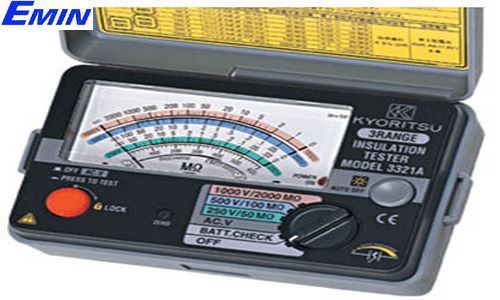

KYORITSU 3321A Analogue Insulation Tester
Manufacturer: KYORITSU Model: 3321A - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Test DC Voltage: 250V/500V/1000V
The metering max norm: 50MΩ/100MΩ/2000MΩ
First measurement resolution: 0.05 ~ 20MΩ (250V) 0.1 ~ 50MΩ (500V) 2 ~ 1000MΩ (1000V)
Accuracy: ± 5%
Award a second measurement: 20 ~ 50MΩ (250V) / 50 ~ 100MΩ (500V) / 1000 ~ 2000MΩ (1000V)
Accuracy: | ± 10%
AC voltage: 600V
Accuracy: | ± 3%
Source: R6P (AA) (1.5V) × 6
Size: 105 (L) × 158 (W) × 70 (D) mm
Weight: 520g approx.
Accessories:
+ 7150A (Remote control switch set)
+ 7081B (Test Lead for Terminal Guard): 3315
+ R6P (AA) × 6
+ Guide
Warranty: 12 months
Manufacturer: Kyoritsu - Japan
Origin: Japan
