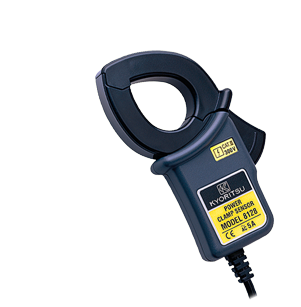

Kyoritsu 8128 Load current clamp sensor
Manufacturer: KYORITSU Model: 8128 - Request a Quotation
- Contact
- In stock: 2 Unit
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Conductor size:Φ24
Rated current: AC 5A (Max.50A)
Output voltage: AC 50mV/5A [Max.500mV/50A] (AC 10mV/A)
Accuracy:
|±0.5%rdg±0.1mV (50/60Hz)
|±1.0%rdg±0.2mV (40Hz~1kHz)
Phase Shift: within ±2.0º (45~65Hz)
Withstand voltage: AC 3540V for 5 seconds
Cable length: Approx. 3m
Output connector: MINI DIN 6pin
Dimensions: 100(L) x 60(W) x 26(D) mm
Weight: 160g
Accessories:9095 (Portable case), Instruction manual, Cable marker
Made in Japan
