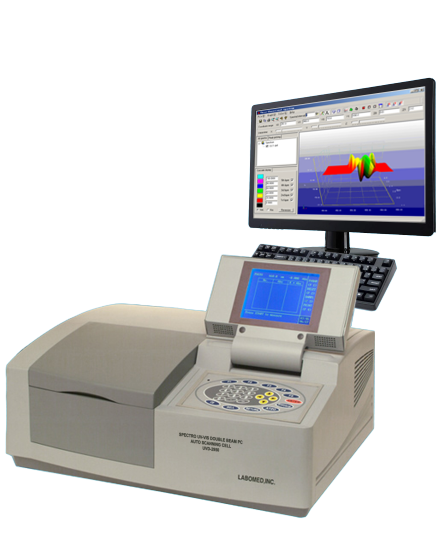

LABOMED UV-VIS Spectro UVD-2950 Spectro UV-Vis Dual Beam PC
Manufacturer: LABOMED Model: UVD-2950 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
| 1) Wavelength Range: | 190 nm – 1100 nm |
| - Spectral Bandwidth: | 1.0 nm. New and Improved! |
| - Resolution: | 1nm. |
| - Stray Light: | <0.1%T (220 nm, Nal; 340 NaNo2), >=2.0Abs (KCI, 200nm) |
| - Wavelength Accuracy: | ¡À0.3nm |
| - Wavelength Reproducibility: | 0.2 nm |
| 2) Photometric System: | The double-beam monitoring ratio system. |
| - Photometric Method: | Transmittance, absorbance, energy and concentration |
| - Photometric Range: | -0.3~3.0 Abs |
| - Photometric Accuracy: | ¡À0.002Abs (0~0.5A) ¡À0.004Abs (0.5~1A) ¡À0.3%T (0~100%T) |
| - Photometric Reproducibility: | 0.001Abs (0~0.5A) 0.002Abs (0.5~1A) 0.15%T (0~100%T) |
| - Photometric Display: | -9999 ---- 9999 |
| - Photometric Noise: | ¡À0.001Abs (500nm, 0Abs 2nm Spectral Bandwidth). |
| - Scanning Speed: | 1400nm/min |
| - Baseline Flatness: | ¡À0.0015 Abs (190-1100nm) |
| - Baseline Stability: | 0.0008Abs/h (500nm, 0Abs 2nm Spectral Bandwidth, 2Hr. warm-up) |
| - Slew Rate of Wavelength: | 3600nm/min |
| 3) DNA/RNA Measurement: | |
| - Results Printout: | Printing of measured data by using any Printer with Parallel Port connection available. |
| 4) Mainframe: | Compact and standalone spectrophotometer mainframe |
| - Light Source: | Socket Deuterium Lamp and Socket Tungsten Halogen Lamp. |
| - Detector: | Double Beam |
| - Sample Chamber: | 2 cell holder |
| - Display | Liquid Crystal Display (LCD 320 iÀ240 dot matrix) |
| - Keypad: | Touch soft keys. |
| - PC Interface: | PC Interface: RS-232 |
| - Size: | 22"x16"x10” |
| - Weight: | 55 Lb |
2 Auto Cell Holder
4 Optical Glass Cells 10mm.
2 Quartz Cells 10mm.
1 Dust cover
1 Instruction manual available in 18 different languages
1 Power cable
1 PC cable
1 Software CD for Windows 98/2000/XP/7
1 Software Operation Manual in 18 different languages
1 Spare Tungsten Halogen Lamp
1 Block Light Cell
1 Extra fuse
DVD of installation and how to use the Spectro
Optional: Peltier Kinetic Test System
Optional: Sipper Flow Through System
Details
- Set of 2 performance testing filters (1 "E filter" for photometric accuracy test and 1 didymium filter for wavelength accuracy test)
- Peltier constant temperature system (15 - 55 ºC Specify: Spectro UV-Vis Double)
- Sipper flow through system (peristaltic pump and flowcell (Specify: Spectro UV-Vis Double)
- Multi-purpose cell holder 20-30-40-50 Path Length
