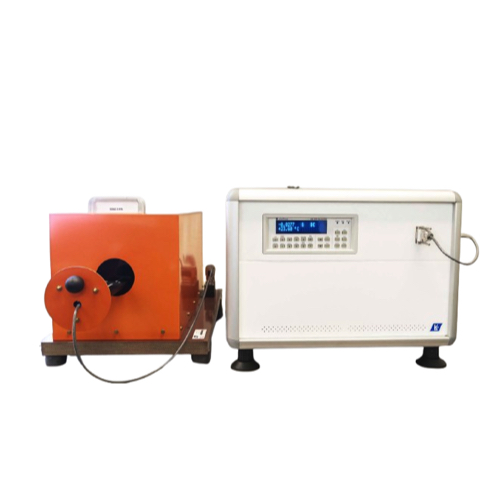

Laboratorio Elettrofisico CR/03 Coercimeter for Soft Magnetic Materials (0.5 A/m ÷ 144 kA/m)
Manufacturer: Laboratorio Elettrofisico Model: CR/03 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
General
Measurable Materials: Soft Magnetic Materials
Measurable Quantities: Hcj, Hsat
Measurable Shapes: Regular or irregular
Hcj Range: 0.5 A/m ÷ 144 kA/m
Hcj Resolution (Max): 6 mOe ÷ 1800 Oe
Sample Size (Max): 20 mm diameter × 110 mm length
Test Time: 30 seconds (typical)
Operating Temperature Range: 15°C ÷ 40°C
Frequency: DC
Accuracy
Hcj: ±1%
Hsat: ±1%
Transversal Field: ±0.5%
Main Electrical Cabinet
Power Supply: 200 Vac, 50-60 Hz, 16 A max absorption
Dimensions: 535 × 655 × 550 mm (21” × 26” × 22”)
Weight: 55 kg (121 lb)
