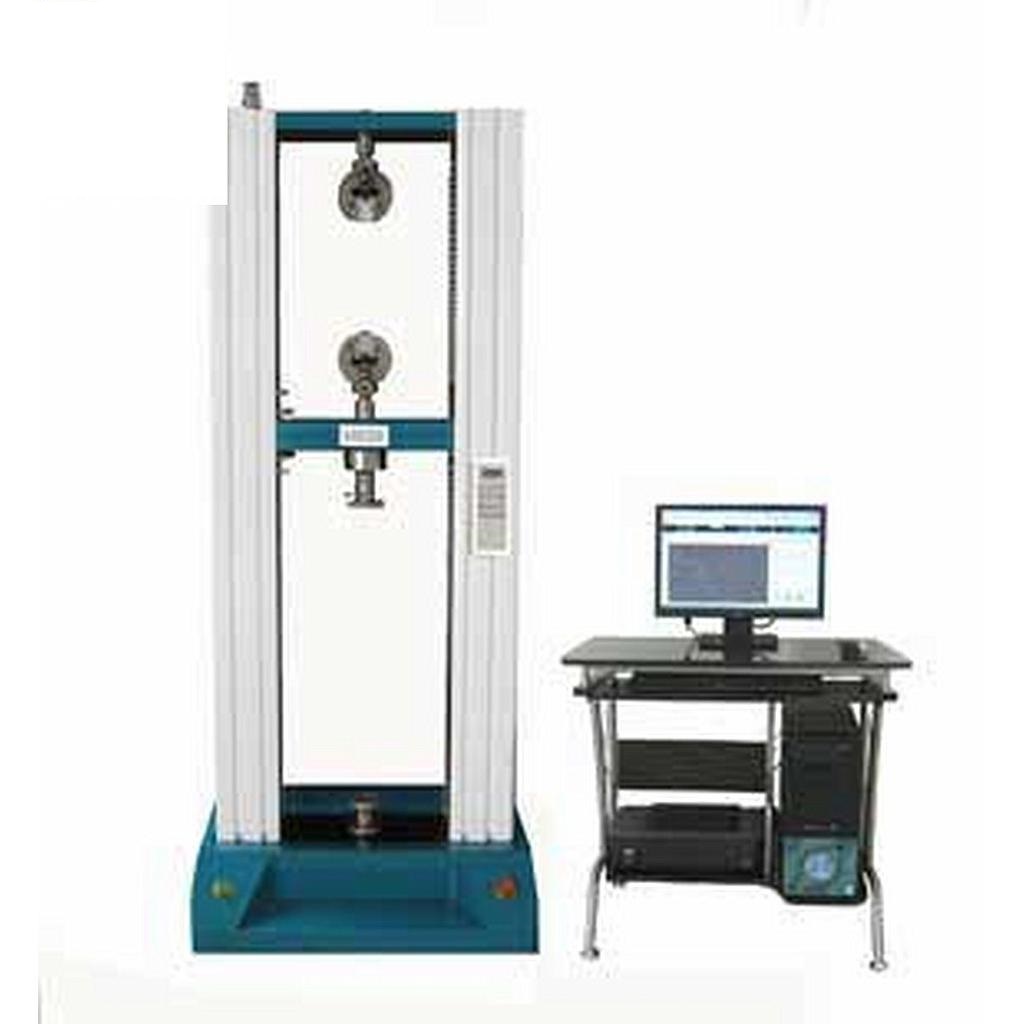

Laryee UE2420 Computer Control Electronic Universal Testing Machine (20KN, 0.4%--100%F.S, double type)

  • Manufacturer: Laryee
    Model: UE2420
    • Request a Quotation Request a Quotation
  • Price (exclude tax) 259,327,200 VND
    Price (include tax) 285,259,920 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

- Maximum force(KN): 20
- Machine type: Double
- Accuracy: ≤±0.5%
- Measuring range of force (KN): 0.4%--100%F.S
- Resolution of force: 1/300000 of maximum force
- Accuracy of displacement measuring: ±0.5%
- Resolution of displacement: 0.1 μm
- Accuracy of deformation measuring: ±0.5%
- Speed range of displacement control: 0.01-500mm/min (Max 1000mm/min as special order)
- Speed range of force control: 0.005-5% F.S / S
- Speed range of deformation control: 0.005-5% F.S/S
- Range of constant displacement, force and deformation: 0.5%-100% F.S
- Speed controlling accuracy: ≦±1.0% of the set value
- Valid tension testing space(mm): 800
- Compression testing space(mm): 900
- Valid width between columns(mm): 400
- Tension Sample
+ Clamping (mm): Flat grips: 0~14
+ Round grips: Ø4~14
- Power supply: 1P~220V, 1-3 kW, 50/60Hz
- Working environment: Room temperature: 10℃~40℃, relative humidity: ≤90%
- Over Dimension without PC table (mm): 830×550×1950
- Weight(Kg): 600kg

Standard Accessories:
Wedge Tension, Compression Plate, 3-Points bending accessories; Encoder installed; Load cell installed; Servo motor
and controller built in; Extensometer; DSP PCI Control card; Installation tools; PC and Printer.

Optional Accessories:
Wedge Tension 1
Wedge Tension 2
Pneumatic Tension
Flat Tension
Film Tension
Opposite Peeling
Thread Tension 1
Thread Tension 2
Bolt Tension
Nail Withdraw
3-Points Bend
Shear
4-Points Bend
Compression Plate
Wood Shear
Wood Bending
