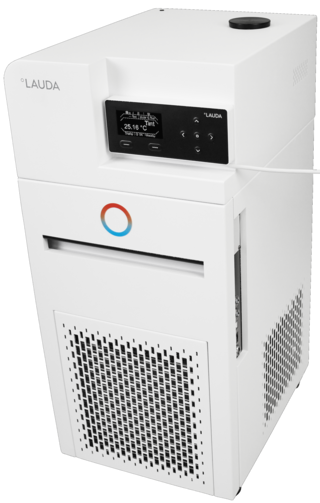

Lauda RP 245 E Heating Circulation Thermostat (-45 ... 200 °C, 4.4 L)

Working temperature range: -45 ... 200 °C

Operating temperature range: -45 ... 200 °C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.05 ± K

Heater power max.: 2.5 kW

Max. power consumption: 3.7 kW

Current consumption: 16 A

Max. discharge pressure: 0.7 bar

Pump_suction: 0.4 bar

Max. pump flow pressure: 22 L/min

Min. filling volume: 2.4 L

Max. filling volume: 4.4 L

Dimensions (WxDxH): 300 x 430 x 675 mm

Weight: 39 kg

Power supply: 230 V; 50 Hz
