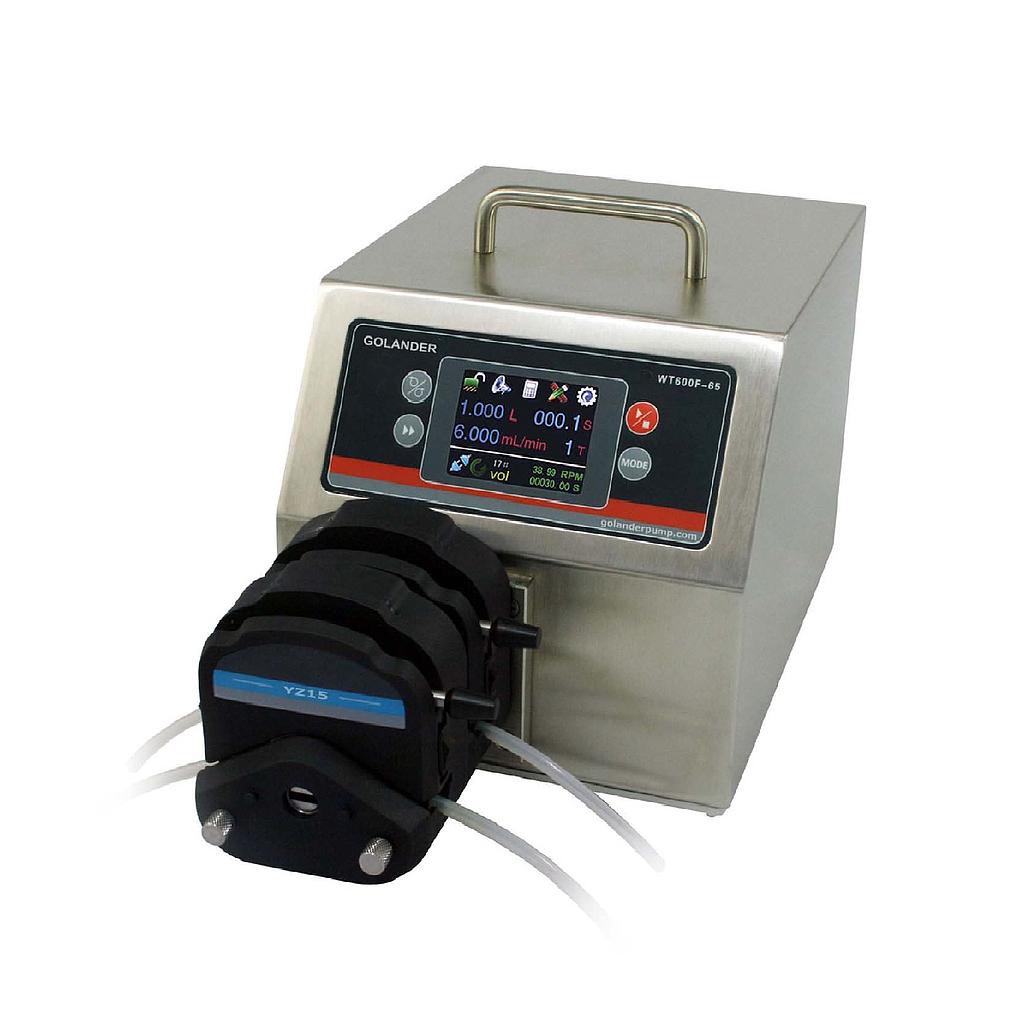

Leadfluid WT600F-65 Intelligent Dispensing Peristaltic Pump (0.06-2300mL/min, 2 CH)
Manufacturer: Leadfluid Model: WT600F-65 P/N: WT600F-65(2xYZ15) Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Flow range: 0.06-2300 mL/min
Speed range: 0.1-600 rpm
Speed resolution: 0.1 rpm
Flow accuracy: 0.5%
Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
Power consumption: < 100W
External on/off voltage control: 5V, 12V (standard), 24V (optional). External analog control: 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS interface
Operating condition: Temperature 0~40°C; Relative humidity < 80%
IP grade: IP65
Dimensions (L x W x H): 330 x 220 x 235 mm (13.0 x 8.7 x 9.3 inch)
Weight: 7.1kg (15.7 lbs)
| Drive type | Pump head | Channel | Tubing size (mm) | Flow rate (mL/min) per channel |
| WT600F-65 | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-1700 |
YZ25 | 1 | 15# 24# | 0.16-1700 | |
2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 0.006-1700 | |
2 x YZ25 | 2 | 15# 24# | 0.16-1700 | |
YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |
YT25 | 1 | 15# 24# 35# 36# | 0.16-2900 | |
2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |
2 x YT25 | 2 | 15# 24# 35# 36# | 0.16-2900 | |
KZ25 | 1 | 15# 24# 35# 36# | 0.25-6000 |
