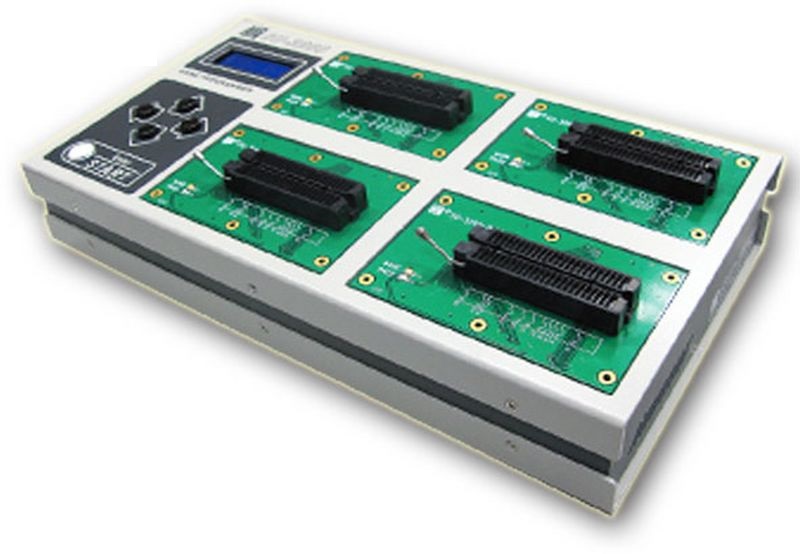

Leaptronix SU-3280 Stand-along Universal Gang Programmer
Manufacturer: LEAPTRONIX Model: SU-3280 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Logic Signal Level : 1.5V~6.0V,10mV
IOL,IOH Current : 10mA
Logic Signal Frequency : 75MHz (3-5V) / 60MHz (2.5V) / 45MHz (1.8V) / 25MHz (1.5V)
Signal Skew : <±2.5nS (3-5V)
Clock : 0Hz~75MHz
VDD & VIO Level : 1.5V~6.5V,10mV
IDD & IIO Current : 400mA
VPP & VHH Level：1.5V~15.5V,20mV
IPP & IHH Current：150mA
Display：20X4 Character LCD / WORK & PASS LED
Button : Direction key x 4. START key with light x 1
Embedded Memory : 2GBytes FLASH
Module Dimension : 120mm(L) × 75mm(W)
SU-320 Dimension : 360mm(L) × 190mm(W) × 64mm(H)
Weight : 3.0 kg
Support Device : NOR FLASH, SPI EPROM, EEPROM, MPU, MCU, CPLD, NV-RAM…
Support File format : Binary/Machine Code, Intel HEX, TEK HEX, Motorola HEX
PC System Requirements: Windows 8 / 7 / Vista / XP ( 32bits & 64bits )
Standard Accessories
Main Unit x1
USB Cable x1
CD ( Included Driver & User Manual ) x1
AC Line Cord x1
SU-3280-DIP48, Universal DIP-48 module x4
Moreover, SU-3280 adopts modular design. If with the universal DIP module, you can just use general type adapter on the market for different package. Or you can select gang module for 8-16 site programming.
- Provides with DUT 75MHz bandwidth and < ±2.5nS signal skew.
- Provides the stand-alone mode operation. Just use 5 keys and 20x4 LCD, you can select a project and
- Provides asynchronous and concurrent operation for the 4 modules which allows chips to begin programming immediately upon insertion the chip fully on the same module. There is a message show on the LCD to inform operator to take off the finished device and inserts a new device.
- Provides IC insertion test and contact check before programming. Under the AUTO mode, just insert
- Provides high-expansion flexibility modular design. It can use as single-side universal programmer or
- Provides mass-production-oriented software. There is used a project file to control to minimize the operator error. Moreover, the log file help the production managements.
- Power Signal：
- Logic Signal Level : 1.5V~6.0V,10mV
- IOL,IOH Current : 10mA
- Logic Signal Frequency : 75MHz (3-5V) / 60MHz (2.5V) / 45MHz (1.8V) / 25MHz (1.5V)
- Signal Skew : <±2.5nS (3-5V)
- Clock : 0Hz~75MHz
- VDD & VIO Level : 1.5V~6.5V,10mV
- IDD & IIO Current : 400mA
- VPP & VHH Level：1.5V~15.5V,20mV
- IPP & IHH Current：150mA
- Display：20X4 Character LCD / WORK & PASS LED
- Button : Direction key x 4. START key with light x 1
- Embedded Memory : 2GBytes FLASH
- Module Dimension : 120mm(L) × 75mm(W)
- SU-320 Dimension : 360mm(L) × 190mm(W) × 64mm(H)
- Weight : 3.0 kg
- Support Device : NOR FLASH, SPI EPROM, EEPROM, MPU, MCU, CPLD, NV-RAM…
- Support File format : Binary/Machine Code, Intel HEX, TEK HEX, Motorola HEX
PC System Requirements
- OS : Windows 8 / 7 / Vista / XP ( 32bits & 64bits )
- Processor : Pentium 4 above
- Memory : 2 GB RAM above
- Hard Disk : Main program 500MB above / Buffer 2GB above
- Communication : USB 2.0 High Speed
- Main Unit x1
- USB Cable x1
- CD ( Included Driver & User Manual ) x1
- AC Line Cord x1
- SU-3280-DIP48, Universal DIP-48 module x4
- BGA,uBGA,SON,WSON,QFN(MLF),TSOP,TSSOP,SOP,VSOP…adapters
- BGA64-29-X4(10x13), BGA64-29-X4(11x13), BGA64-29-X4(9x9),BGA64-J3-P3-X4(10x13), BGA64-J3-P3-X4(10x8),
NOR-TSOP48-X4, NOR-TSOP56-29-X4, NOR-TSOP56-J3-X4, NOR-TSOP56-P3-X4,SFLASH-SOP16-X4,
SFLASH-BGA24-4x6B-X4, SFLASH-BGA24-5x5B-X4,SOP8-207-X4, SOP8-150-X4, SON8-4x4-X4,
WSON8-1.97x2.46-X4,WSON8-2x3-X4, WSON8-5x6-X4, WSON8-6x8-X4…adapters
