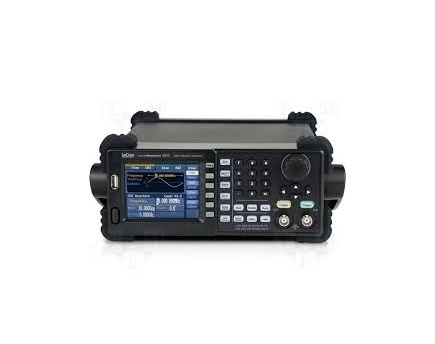

WaveStation 2052 Function/Arbitrary Waveform Generator (50Mhz, 125MS/s , 2CH )

- Bandwidth: 50 MHz
- Channels: 2
- Waveforms: Sine, Square, Ramp, Pulse, Noise, Arbitrary: Stairup, Stairdown, Positive Pulse, Negative Pulse,
Up Ramp, Down Ramp, Sinc, Gaussian, LogFall, LogRise, Sqrt, TwoTone, etc
- Sine: 1 μHz - 50 MHz
- Square: 1 μHz - 25 MHz
- Pulse: 500 μHz - 5 MHz
- Triangle/Ramp: 1 μHz - 300 kHz
- Arbitrary Waveforms: 1 μHz - 5 MHz
- Modulation: AM, PM, FM, ASK, PSK and FSKduty-cycle square waveform
- External Clock: 10 MHz ± 100 Hz
- Sync Output: TTL compatible
- Trigger Output: TTL compatible
- External Trigger: TTL compatible
- Output Amplitude - CH1: 2 mVpp - 6 Vpp
- Output Amplitude - CH2: 2 mVpp - 20 Vpp
- Display: 3.5 inch TFT-LCD, 320 x 240, RGB
- Dimensions (H x W x D): 105 mm x 229 mm x 281 mm (4.1” x 9.0” x 11.1”)
- Weight: 2.6 kg (5.7 lbs)
- Power: 100 - 240 Vrms (± 10%), 50 / 60 Hz)
- Included with Standard Configuration
+ Power Cable for the Destination Country
+ USB 2.0 Cable Type A to B (Black, 1 m)
+ USB to GPIB Converter
+ Getting Started Manual
+ Performance Certificate
+ Declaration of Conformity
+ WaveStation PC Software CD
+ Product Registration Card
