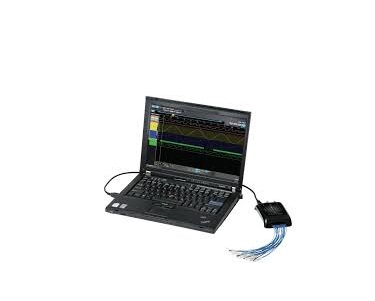

Lecroy LogicStudio 16 Logic analyzers (16ch)
Manufacturer: LECROY Model: LogicStudio 16 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Input Channels | 16 |
Sample Rate | 1GS/s on 8 Ch, 500 Ms/s on 16 Ch |
Minimum detectable pulse width | 3.75 ns |
Memory | 40k points on 8 Ch, 20 kpts on 16 Ch |
Trigger Types | Edge, pattern, pulse width, pattern width. I2C, SPI, UART |
Threshold Selections | TTL, CMOS(1.8V, 2.5V, 3.3V, 5V), User defined |
User-defined Threshold Range | 0-7V |
Maximum survivable input voltage | +/- 40VDC |
Threshold accuracy | +/- 150 mV + 5% of threshold |
Maximum Input dynamic range | 40 V p-p |
Minimum voltage swing | 500 mVp-p |
Input impedance | 150k parallel 12pF |
Channel-to-Channel Skew | 1ns typical |
Trigger resolution | 500MS/s |
Host port | USB 2.0, bus-powered peripheral |
Size | 3.2" x 4.9" x 1.1" (81.3 mm x 124.5 mm x 28.0 mm) |
