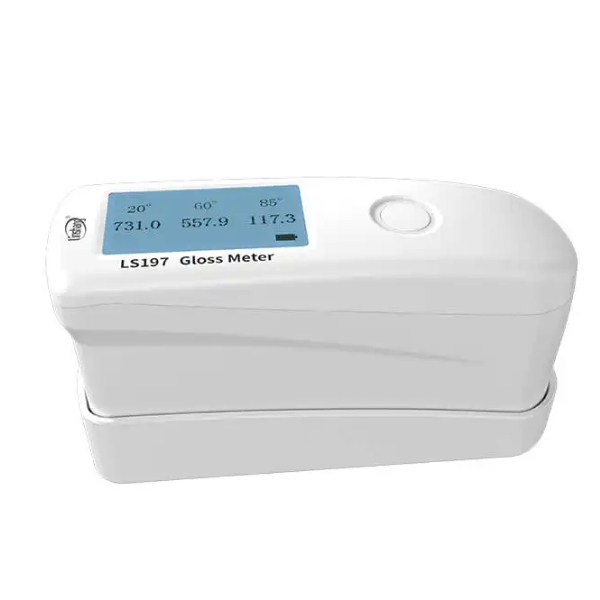

Linshang LS197 Gloss Meter (20°, 60°, 85°)

Measuring Angle: 20°, 60°, 85°

Measuring Light spot:

           20°: 9mm*9mm

           60°: 9mm*15mm

           85°: 5mm*38mm

Minimum Test Material Size: 57mm*10mm

Measuring Range:

           20°: 0-2000GU

           60°: 0-1000GU

           85°: 0-160GU

Resolution: 0.1GU




Indication Error:



Power Supply: rechargeable lithium3.7V@2000mAh

Display: 240×128 Dot Matrix

Language: Simplified Chinese, English

Charge Port: USB(Type-C)

Data Transmission: USB

Size: 140*48*75mm

Weight: About 300g

Working Temperature: 10~45℃,0~85%RH(no condensation)

Storage Temperature: -10~60℃, 0~85%RH(no condensation)


User Manual
