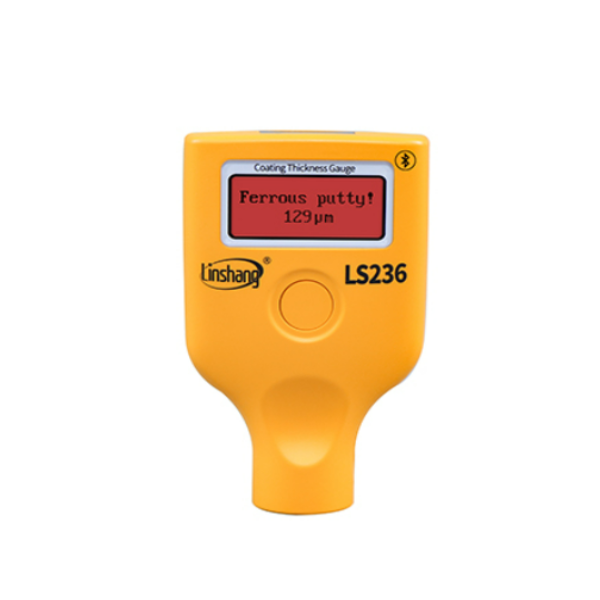

Linshang LS236 Car Paint Meter (0.0-3500μm)

Measuring range: 0.0-3500μm


        0.1μm: (0μm-99.9μm)

        1μm: (100μm-3500μm)

Accuracy: ≤±(3%H+2μm), H is the standard value

Unit: μm / mil

Measuring interval: 0.5 s

Minimum measuring area: Ø = 25mm

Minimum radius of curvature: Convex: 5mm / Concave: 25mm

Minimum substrate thickness: Fe:0.2mm / Al:0.05mm

Display: 128×48 dot matrix LCD

Power supply: 2 pcs of 1.5V AAA alkaline battery

Range of working temperature: -40℃-50℃

Storage temperature range: -50℃-60℃

Host size: 100*60*24 mm

Weight (including battery): 80g


User Manual
