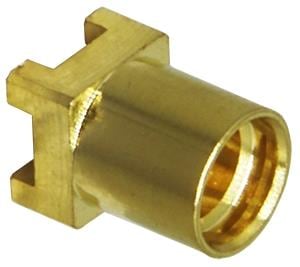

Linx Technologies - TE Connectivity CONMMCX001-SMD-T PCB Connectors MMCX ST PCB-JCK SMT AU
Manufacturer: Linx Technologies - TE Connectivity Model: CONMMCX001-SMD-T - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Gender: Jack (Socket)
Polarity: Standard
Frequency: 0 Hz to 6 GHz
Impedance: 50 Ohms
RF Series: MCX
Body Style: Vertical PCB Mount
Body Finish: Gold
Orientation: Straight
Unit Weight: 200 mg
Contact Type: Coaxial
Body Material: Brass
Mating Cycles: 500 Cycles
Insertion Loss: 0.2 dB
Mounting Style: SMD/SMT
Voltage Rating: 1 kVAC
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Insulation Resistance: 750 MOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
