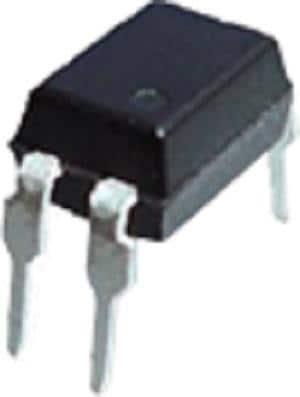

Lite-On LTV-814HM Transistor Output Optocouplers Optocoupler
Manufacturer: Lite-On Model: LTV-814HM - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 6.5 mm
Height: 3.5 mm
Length: 4.6 mm
Fall Time: 18 us
Rise Time: 18 us
Output Type: NPN Phototransistor
Unit Weight: 260 mg
Mounting Style: Through Hole
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel
If - Forward Current: 100 mA
Vf - Forward Voltage: 1.7 V
Current Transfer Ratio: 80 %
Pd - Power Dissipation: 320 mW
Maximum Collector Current: 80 mA
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 30 C
Maximum Collector Emitter Voltage: 35 V
Collector-Emitter Breakdown Voltage: 35 V
Maximum Collector Emitter Saturation Voltage: 200 mV
