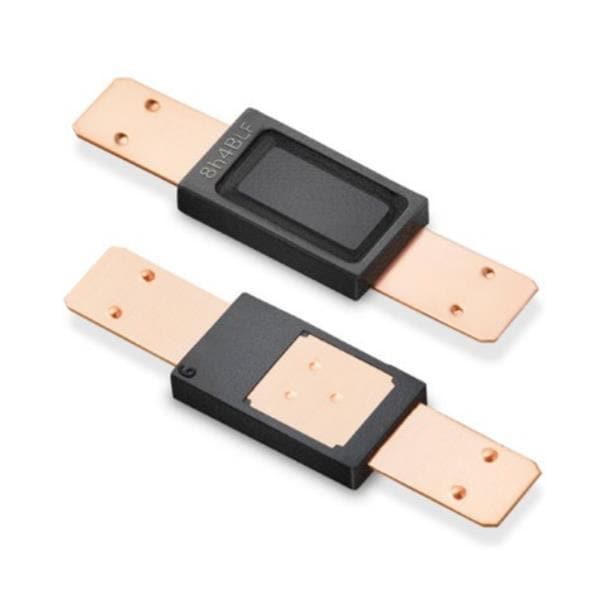

Littelfuse MHP-TAC15-12-90N Metal Hybrid Protection Breakers MHP-TAC15-12-90N
Manufacturer: Littelfuse Model: MHP-TAC15-12-90N - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 2.9 mm
Height: 0.85 mm
Length: 4.85 mm
Approvals: UL, cUL
Tolerance: +/- 5 C
Resistance: 5 mOhms
Width - in: 0.11 in
Width - mm: 2.8 mm
Length - in: 0.19 in
Length - mm: 4.75 mm
Hold Current: 15 A
Contact Rating: 12 VDC / 25 A, 6000 cycles
Rated Temperature: + 90 C
Reset Temperature: > 40 C
Maximum Temperature: + 90 C
Maximum Leakage Current: 150 mA
Minimum Holding Voltage: 3 V
Maximum Breaking Current: 5 VDC / 80 A, 100 cycles
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 30 C
