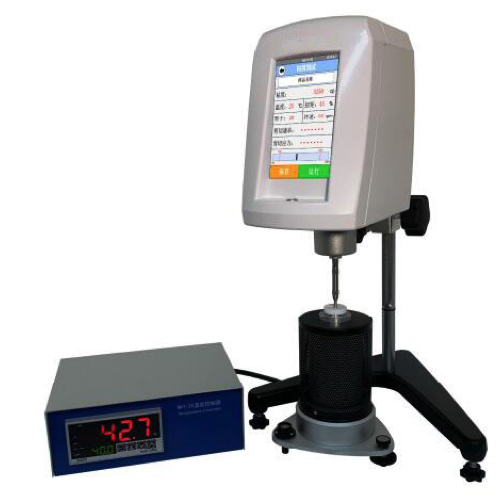

Lonroy HBDV-2T-H Touch Screen High Temperature Brinell Viscometer (25.6 – 80M)
Manufacturer: Lonroy Model: HBDV-2T-H - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Control / Display: 5-inch color touch screen
Speed(r/min): 0.1 – 200, Stepless speed 2000 speeds available
Measuring range(mpa.s): 25.6 – 80M
Rotor No.0: 25.6-2K
Rotor No.21: 200-4M
Rotor No.27: 1K-20M
Rotor No.28: 2K-40M
Rotor No.29: 4K-80M
Rotor: 21,27,28,29(Standard) No.0 (Optional)
Sample dosage:
Rotor No.0: 21ml
Rotor No.21: 7.8ml
Rotor No.27: 11.3ml
Rotor No.28: 12.6ml
Rotor No.29: 11.5ml
Measurement error: ±1% (Newtonian liquid)
Repetitive error: ±0.5% (Newtonian liquid)
Show shear response / shear rate: have
Timing function: have
Real-time display:
Viscosity curve
Time-viscosity curve
Temperature-viscosity curve (optional temperature sensor)
(Optional data processing software shows shear rate and viscosity curves)
Kinematic viscosity: Density of samples to be entered
Measuring range: Automatic display of selected combinations of rotor and rotation speed. Measurable viscosity range
Self-built Measuring Procedures: Save 30 groups (including rotor, speed, temperature, time, etc.)
Preservation of measurements: Save 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.))
Printer interface: Print data, curves (need to buy printer)
Computer output interface: RS232
Working power supply:
Viscometer mainframe: wide voltage operation (110 V/60 Hz or 220 V/50 Hz)
Heating furnace and temperature control unit: 220V 50Hz
Outline dimension: 300 × 300 × 450(mm)
Main features:
- Adopts ARM technology, built-in Linux system. Operation interface is simple and clear, through the creation of testing procedures and data analysis, fast and convenient viscosity testing;；
- Accurate viscosity measurement: each measuring range is automatically calibrated by computer with high precision and small error；
- Display rich: in addition to viscosity (dynamic viscosity and kinematic viscosity), there are temperature, shear rate, shear stress, measured value as a percentage of the full range value (graphic display), range overflow alarm, automatic scanning, maximum measurement range under the current rotor speed combination, date, time, etc. The kinematic viscosity can be displayed under the known density to meet the different measurement requirements of users；
- Fully functional: can be timed measurement, self-built 30 groups of testing procedures, access to 30 groups of measurement data, real-time display viscosity Curves, printed data, curves, etc.；
- Stepless speed regulation:
- RV1T series:0.3-100 rpm, a total of 998 rotational speeds
- RV2T Series:0.1-200 rpm,2000 rpm
- Shows the curve of shear rate to viscosity: can set the range of shear rate, real-time display on the computer; can also show the curve of time to viscosity
- Operating System in English and Chinese
