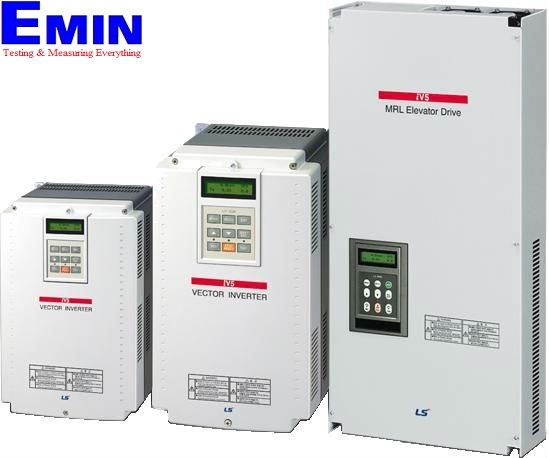

LS SV037IV5-2DB Variable Frequency Driver (MB) (3P 230V, 3.7KW)

Motor Ratinh : 5HP/3.7KW

Output rating :  6.1kVa, 16A, 3P 200 ~ 230V, 0 ~ 3600 Rpm

Input rating : 3P 200 ~ 230V, 50/60hz

Control method :  VFD

Speed reference resolution : Digital command : 0.1rpm/Analog reference : +0.0005% of Max ouput freq

Speed accurancy : Digital command : +-0.01 of Max ouput freq./ Analog signal reference : +-0.02 of Max output freq

Torque control accuracy : 3%

Frequency : Analog : -10/10V, 4-20mA. Digital : Keypad

Analog input : 3 Channel (AI1, AI2, AI3) : 2 Extention chanel (AI4, AI5),  -10~ 10V/ 0-10V/10 ~ 0V/4-20mA, AI3, AI5 motor NTC, PTC selectable.

Contact input : FX, RX, BX, RST, P1~P7

Analog ouput : 2 channels : AO1, AO2. -10 ~ 10V/10 ~ -10V/0~10V/10V~0V

Contact ouput : 2 channel  (1A-1B,2A-2B), 1  Fault

Open Colector : 1

Protection : Over Voltage, Over current, Low voltage, over load…

Communication (option) : RS485, Profibus DP, DeviceNet (Option)
