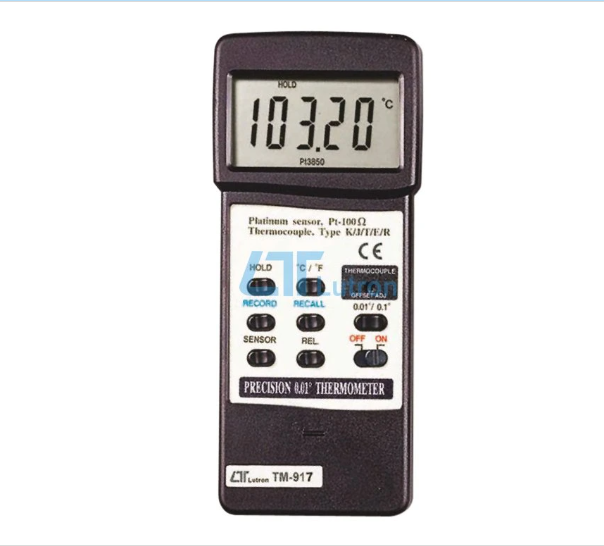

LUTRON TM-917 thermometer

- Display:

  - Type: Super large LCD with unit indication

  - Size: 62 mm x 34 mm

  - Digit Size: 13 mm (0.5 inch)

- Measurement Functions:

  - Probe Types:

    - Platinum PT 100 ohm (0.00385 alpha coefficient, DIN IEC 751)

    - Thermocouple Type K, J, T, E, R

  - Resolution: 0.01℃ and 0.1℃ selectable

  - Accuracy:

    - Pt 100 ohm probe: ±(0.15 + 0.002 x T)℃

  - Measurement Range:

    - Pt 100 ohm: -199.99 to 850.0℃

    - Type K: -199.99 to 1370.0℃

    - Type J: -199.99 to 900.0℃

    - Type T: -199.99 to 400.0℃

    - Type E: -199.99 to 779.9℃

    - Type R: 0 to 1770.0℃

 - Power Supply:

    - DC 9V battery (006P, MN1604, PP3 or equivalent)

  - Operating Environment:

    - Temperature: 0 to 50℃ (32 to 122℉)

    - Humidity: Less than 80% RH

  - Dimensions: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inches)

  - Weight: 285 g (0.62 lb)

Details

datasheet
