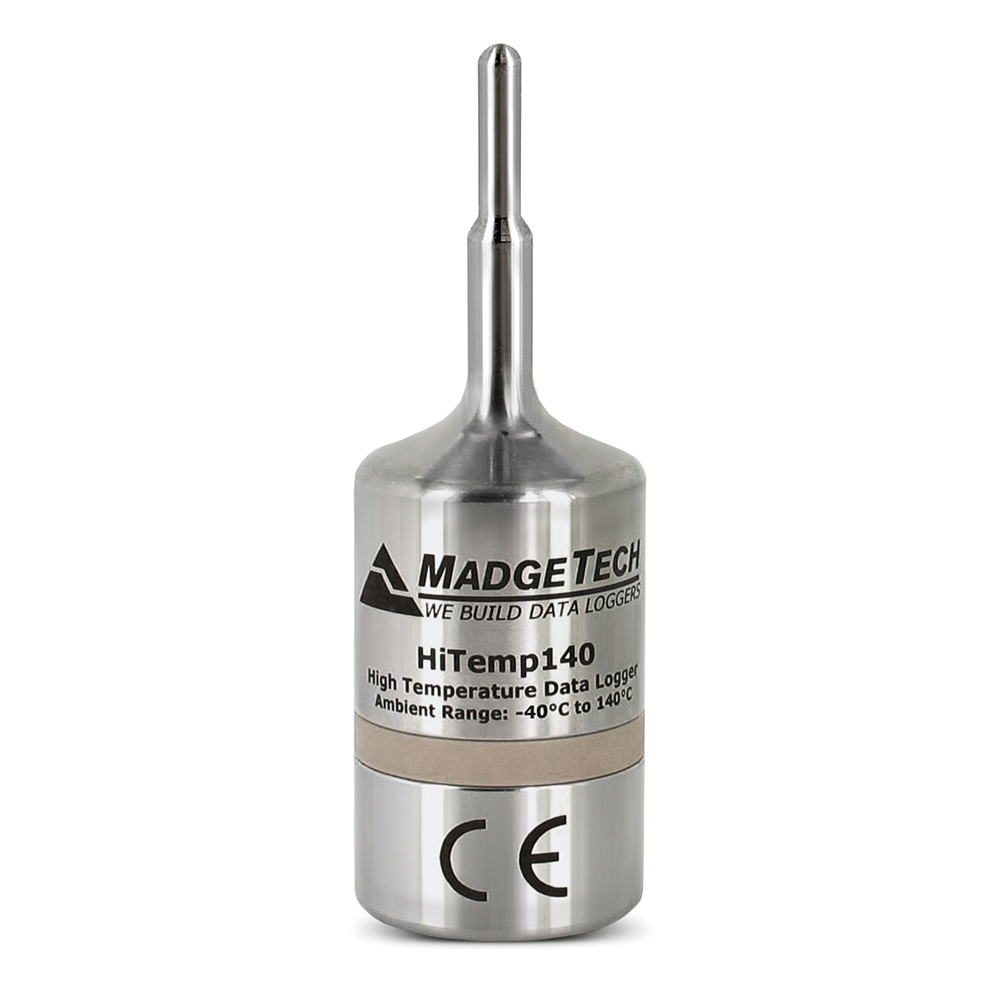

Madgetech HITEMP140-2-TD High Temperature Data Logger (-200 °C - +260 °C)

Temperature:

- Temperature Sensor: 100 Ω Platinum RTD

- Temperature Resolution: 0.01 °C (0.018 °F)

- Temperature Calibrated Accuracy:

±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)

±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)

±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F)

- Probe Temperature Range: -200 °C to +260 °C (-328 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C)

General

Memory: 32,256 readings

Reading Rate: 1 reading every second up to 1 reading every 24 hours

Baud Rate: 125,000

Battery Life: 2 years typical (1 minute reading rate); User Replaceable Battery

Material: 316 Stainless Steel, Radel

Dimensions (Body):

- HiTemp140-2, 5.25, 7: 1.9 in x 0.970 in dia. (48 mm x 24.6 mm dia.)

Dimensions (Probe)

- HiTemp140-2-TD: 2.0 in x 0.125 in dia. (0.188 in transitional dia.); 51 mm x 3.2 mm dia. (4.8 mm transitional dia.)

Key Ring End Cap: Key ring replaces standard bottom; Thru-hole: 0.150"

IP Rating: IP68

Submersible: Yes

Operating Environment: -40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)

Required Interface Package: IFC400

Approvals: CE
