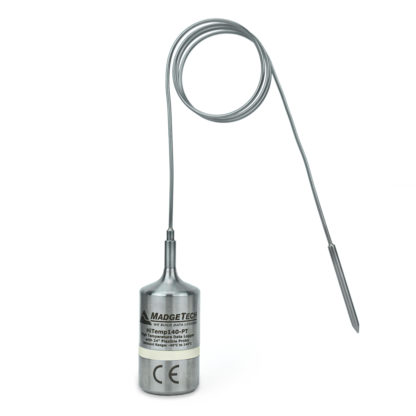

Madgetech HiTemp140-PT-1-12 High temperature, precision data logger with a bendable probe (-200 °C - +350 °C)
Manufacturer: Madgetech Model: HiTemp140-PT-1-12 P/N: 902306-00 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
General:
Memory: 32,256 readings
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 125000
Battery Life: 2 years typical (1 minute reading rate); User Replaceable Battery
Material: 316 Stainless Steel, Radel
Dimensions*(PT-1-12 Probe):
- Probe Tip: 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.)
- Bendable Portion: 12 in x 0.062 in dia. (305 mm x 1.6 mm dia.)
IP Rating: IP68
Submersible: Yes
Operating Environment: -40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)
Required Interface Package: IFC400
Approvals: CE
Temperature:
Temperature Sensor: 100 Ω Platinum RTD
Temperature Resolution: 0.01 °C (0.02 °F)
Temperature Calibrated Accuracy:
±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F)
Probe Temperature Range: -200 °C to +350 °C (-328 °F to +662 °F) (Body of Logger Cannot Exceed 140 °C)
