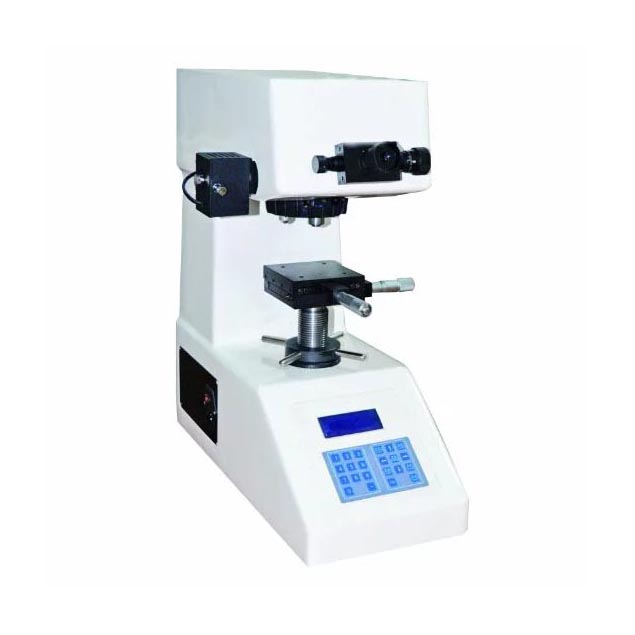

MAETALL HV-1000A Vickers Hardness Tester (1HV ~ 3000HV)

Hardness Scale: HV, HK

Test Force: 10-25-50-100-200-300-500-1000gf

Hardness Range: 1HV ~ 3000HV

Test Force Selection: Manually

Implementation of Standards: EN-ISO6507, ASTM E384&E92 JIs

Loading and Unloading Mode: AUTO

Dwelling Time: 0 ~ 60s Adjustable

Turret: AUTO

Micrometer Eyepiece Multiple: 10X

Measure Resolution Ratio: 0.25µm Drum Reading

Objective Magnification: 10X 40X

Total Magnification Times: 100X (Observation) 400X (Measurement)

Measurement Range: 150µm

Optical Channel: Dual Channel / CCD

Filter: Green

Light Source: Halogen Lamp (Brightness Adjustable)

Hardness Resolution Ratio: 0.1 Vickers Unit

Hardness Conversion: Brinell, Rockwell, Surface Rockwell

Max. Height of Test Sample: 90mm

Centerline Depth: 120mm

XY Test Bench Size: 100 x 100mm

XY Test Bench Moving Distance: 25 x 25mm

XY Test Bench Min. Displacement Number: 0.01mm

Operating Temperature: 23 ±5°C

Operating Humidity: <65%

Host Dimension: 530 x 290 x 490mm

Net Weight: 40kg

Power Supply: 220V 2A 50-60Hz
