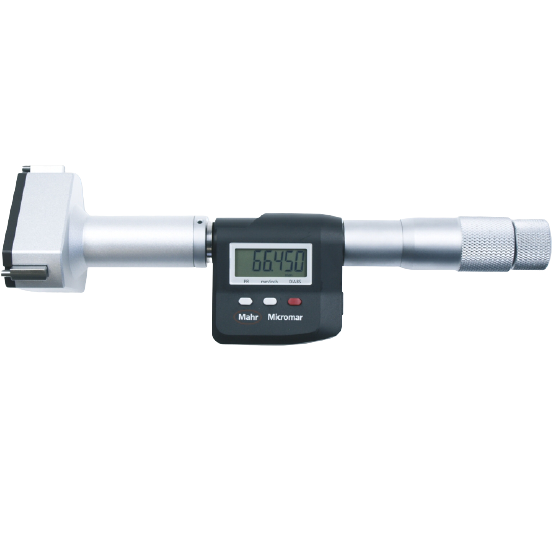

Mahr 4191033 Digital Self-Centering Inside Micrometer (44EWR, 85-100mm/3.35-4”)
Manufacturer: Mahr Model: 4191033 Origin: China - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Product type: 44EWR
Measuring range: 85-100mm/3.35 – 4”
Graduation value: 0.001mm/.00005”
Error limit: 5µm
Standard: DIN 863-4

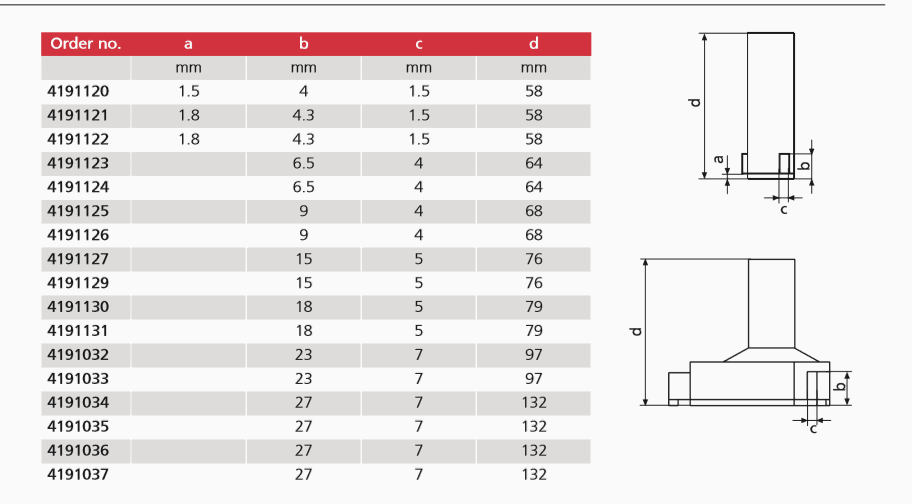

Measuring depth: 97mm
Measuring depth with extension: 247mm
Package contains: basic units 44 EWg, measuring head 44 Ak, instruction manual, battery, case
Accessories:
Battery 3 V, CR 2032
Digimatic data cable (2 m), type 16 EWd
16 EWe transmitter for e-Stick, type 16 EWe
Data connection cable RS232C (2 m), type 16 EXr
16 EXu data connection cable USB (2 m)
Adjustment rings DIN 2250C (8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 85mm, 125mm, 175mm), type 355E
Extensions 75 mm, (6 – 12 mm), type 44Av
Extensions 75 mm, (12 – 20 mm), type 44Av
Extensions 150 mm, (20 – 30 mm), type 44Av
Extensions 150 mm, (30 – 200 mm), type 44Av
e-stick recevier
FEATURES:
• Threaded connection for changing the measuring head
• Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
• Anvils from 12 mm are carbide-tipped
• From 12 mm the anvils can be used to measure the bottom of a bore
• From 40 mm all measuring heads are made from aluminium to reduce weight
• Software MarCom Professional free download: www.mahr.com/ marcom (only for Mahr data cables and wireless systems with USB and RS232 interface)
• Digit height: 8.5 mm
• Data interface: Digimatic, Opto RS232C, USB
• Energy supply: Battery life approx. 2 years
• IP protection category: IP 52
