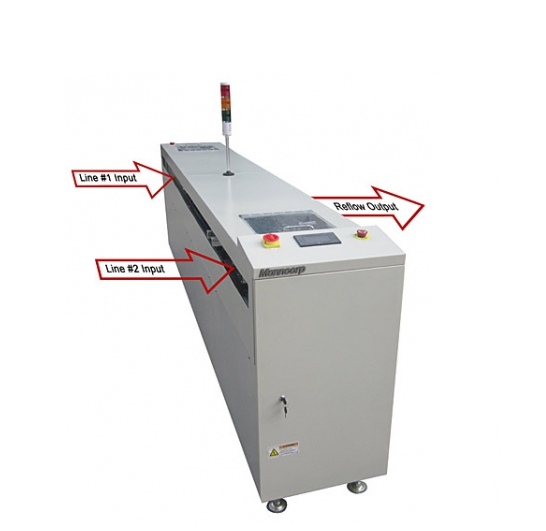

Manncorp PC-350W-ST SMT PCB Line Combiner

  • Manufacturer: MANNCORP
    Model: PC-350W-ST
    Origin: China
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Manncorp - USA

Model: PC-350W-ST

Origin: China

Warranty: 12 months


PCB Size: 50 mm L x 50 mm W to 400 mm L x 460 mm W (1.97" L x 1.97" W to 15.75" L x 18.11" W)

PCB Thickness: 0.4 mm min. (0.016" min.); 2.5 mm max. (0.098" max.)

Conveyor Direction: Front Rail Fixed Left to right (standard) or right to left (optional) operation

Conveyor Height: 900 +50/-20mm (35.5" +2"/-075")

Conveyor: 3 mm Edge Belt

Voltage: 110 VAC, 50/60 Hz

Power: 300 VA max.

Controls: Omron PLC Controller; Yamatake Japan Sensor Control

Machine Dimensions: 3800 mm L x 600 mm W x 1100 +50/-20 mm H (12.5" x 23.5" x 39" + 2"/-075" )

Net Weight: 300 Kg (662 lbs.)

Shipping Weight: 450 Kg (992 lbs.)
