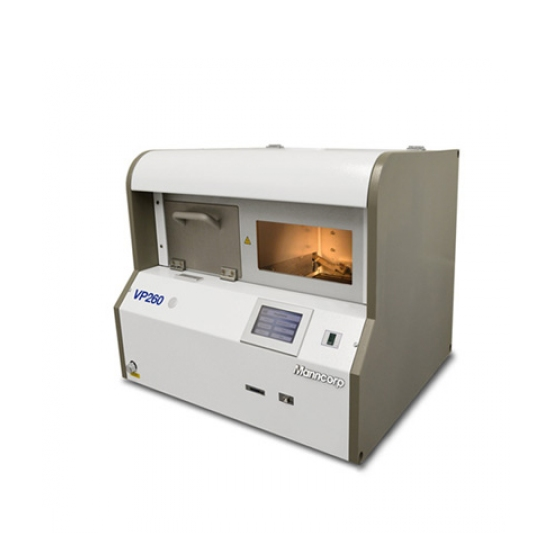

Manncorp VP260 Bench Top Vapor Phase

  • Manufacturer: MANNCORP
    Model: VP260
    Origin: China
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Manncorp - USA

Model: VP260

Origin: China

Warranty: 12 months


Max. PCB Size: 300 x 260 x 70 mm (11.8" x 10.2" x 2.75")

Fluid Capacity: 3 Kg (6.6 lbs)

Avg. Fluid Consumption: 1.5 – 2 g/cycle

Cooling Water Flow Requirement: 1 l/min (0.26 gal/min).

Cooling Water Supply: 2.5 – 4.0 bar (35 – 60 psi) Tap water or recirculating chiller

Startup Time: 15-20 min

Avg. Cycle Time: 3 – 5 min (profile dependent)

Voltage Requirements: 208V, three-phase, 50/60 Hz

Power Consumption: 2.1 KW (Soldering); 0.9 KW (Standby Mode)

Dimensions (L x W x H): 770 x 710 x 680 mm (30.3" x 28" x 26.8")

Net Weight: 110 Kg (243 lbs)
