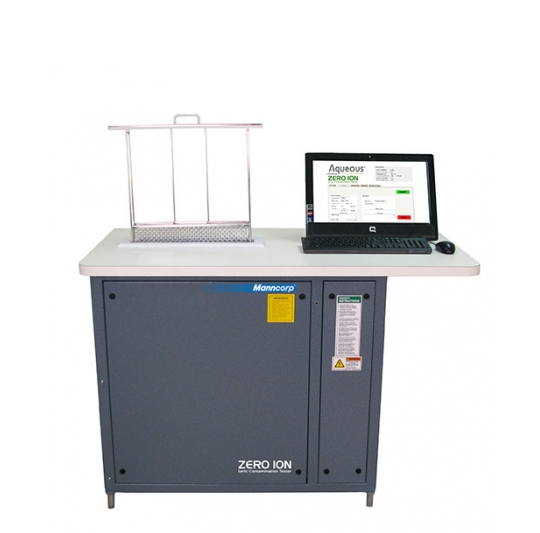

Manncorp Zero-Ion G3 Cleanliness Tester

  • Manufacturer: MANNCORP
    Model: Zero-Ion G3
    Origin: China
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Manncorp - USA

Model: Zero-Ion G3

Origin: China

Warranty: 12 months


Cleanliness Measurement Standard: Resistivity of solvent extract (ROSE) test

Other Cleanliness Standards Met: MIL-P-28809, IPC-TM-650

Test Duration: From 30 seconds to 4 minutes, depending on contamination

Test Solution: 75% IPA / 25% DI

Measurement Technology: Test board immersion, dynamic testing

Maximum Test Board Size (specify when ordering): 12" x 12" (304 mm x 304 mm) standard; 18" x 18" (457 mm x 457 mm); 24" x 24" (609 x 609 mm)

Maximum Test Board Height: 3.5" (89 mm)

Control System: All-in-One PC with 18.5" LCD interface

ESD Counter Top: Standard

Auto Print & SPC Data Storage: Standard

Dynamic Filtration: Standard

Power Requirements: 120 VAC 10 amps or 240 VAC 5 amps

Dimensions (WxLxH): 39" x 35" x 37" (99 x 635 x 940 mm) (Not including countertop, monitor & keyboard holder)

Weight: 288 lbs (131 kg)
