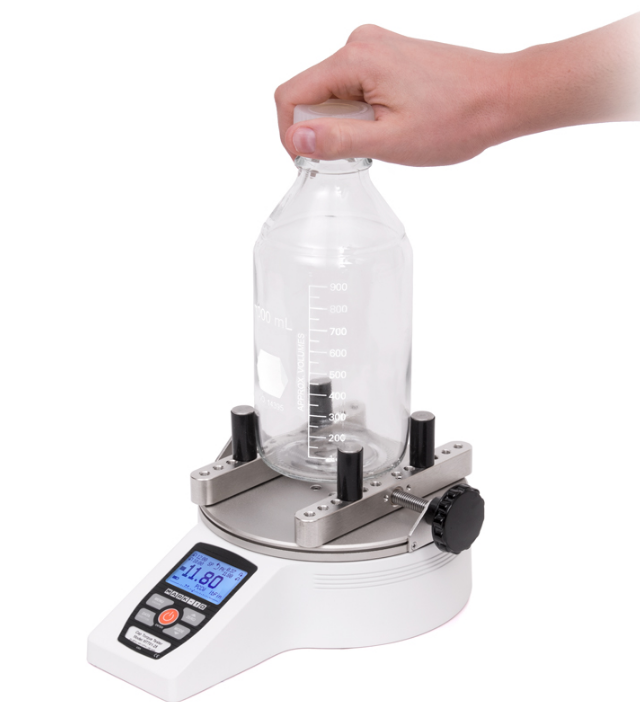

Mark-10 MTT01-100 Digital Cap Torque Testers (100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm)

Capacity x Resolution: 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm

Accuracy: ±0.3% of full scale

Sampling Rate: 7.000 Hz

Bottle diameter range: Ø0.5 – 7.5 in [12.7 – 189.4 mm]

Power:

AC adapter: 100-240VAC, 50-60 Hz, 0.3 A

Battery: Rechargeable 8.4V NiMH

Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.

Battery life: Backlight on: up to 7 hours of continuous use

Backlight off: up to 24 hours of continuous use

Units: ozFin, lbFin, kgFcm, Nm, Ncm

Outputs:

USB / RS-232: Configurable up to 115,200 baud

Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices

Analog: ±1 VDC, ±2% of full scale at capacity

General purpose: Three open drain outputs, one input

Set points: Three open drain lines

Safe overload: 150% of full scale (display shows “OVER” at 110% and above)

Weight: 8.4 lb [3.8 kg]

Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
