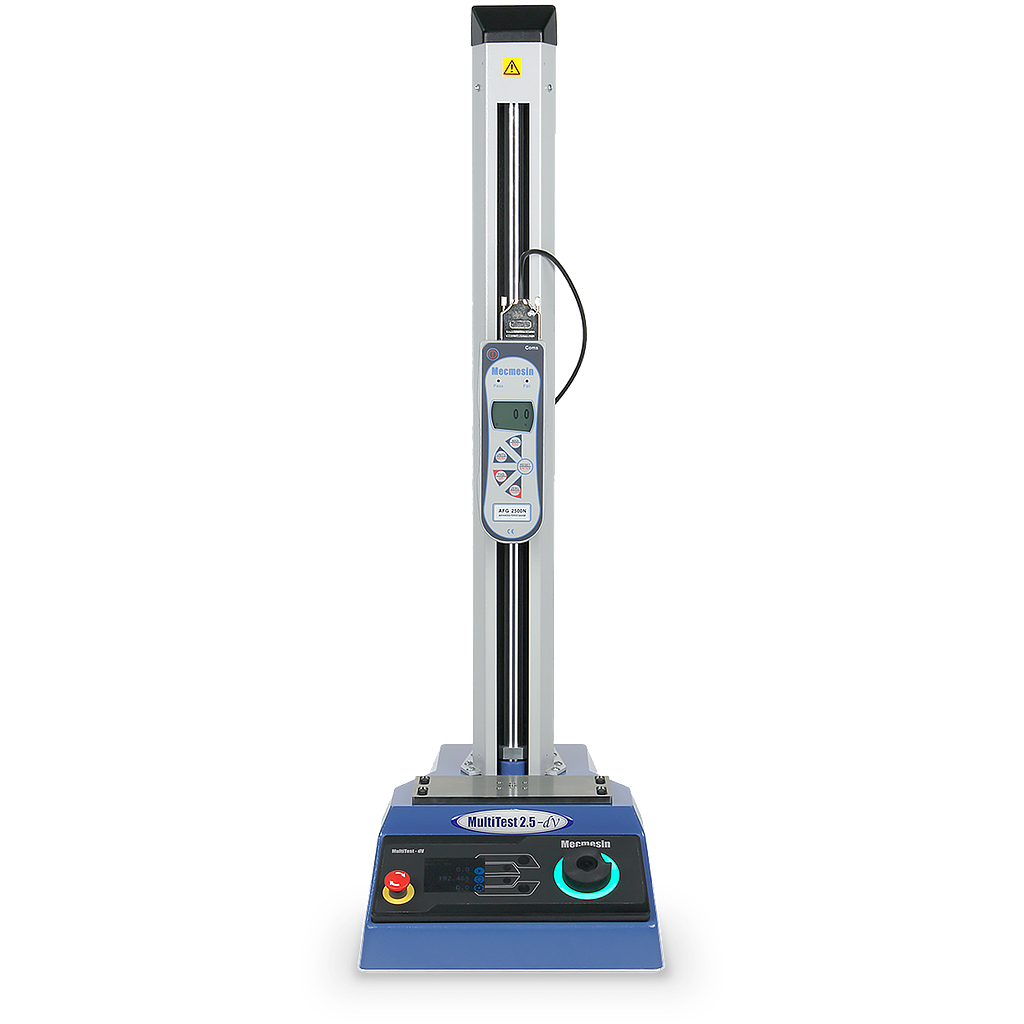

Mecmesin MultiTest-dV with ELS 1 Motorised force tester (1 kN / 100 kgf / 220 lbf; Materials Tester)

Tension & Compression

VFG/AFG loadcells:

VFG: 10 models, from 2.5 N - 2500 N

Accuracy: ±0.1% of full scale. E.g. VFG/AFG 100 has full-scale capacity of 100 N so is accurate to ± 0.1 N at any point between 0 - 100 N. Due to the variety of environmental conditions the device may be used in, this value does not include uncertainty of measurement.

Resolution: 1:5000

ELS: 8 models, from 2 N - 500 N

ELS-S: 5 models, from 100 N - 2500 N

Accuracy: ± 0.5% of reading from 5-100% of the loadcell capacity, eg, ELS 100 when measuring 10N is accurate to ± 0.05 N or when measuring 50N it is accurate to ± 0.25 N.

Resolution: 1:25,000

Displacement

Maximum crosshead travel (between limit switches): 986 mm (0.5kN), 39" (1kN)

Accuracy: ±0.13mm per 300mm travel (±0.005" per 11.8" travel)

Resolution: 0.001mm (0.00004")

Speed

Range: 0.1 - 1200 mm/min (0.004 - 47.2"/min)

Accuracy: Better than ±2% of indicated speed or ±20 µ/min, whichever is greater* See help.mecmesin.com for additional info.

Resolution: 0.1 mm/min (0.004"/min)

Dimensions:

Headroom (vertical space to fit sample): 1005 mm (1kN), 40" (1kN)

Throat depth (column to centre-line of gauge): 70.5 mm (2.6")

Height: 1416 mm (1kN), 56" (1kN)

Width: 290 mm (11.4") (0.5kN to 2.5kN models); 11.4" (0.5kN to 2.5kN models)

Depth: 414 mm (16.3") (0.5kN to 2.5kN models)

Weight: 27.5 kg (61 lbs), 1kN

Common specifications

Voltage: 230 V AC 50 Hz or 110 V AC 60 hz

Operating temperature: 10 - 35°C (50 - 95°F)

Humidity range: Normal industry and laboratory conditions, non-condensing
