Mecmesin OmniTest 0.5 Universal testing machine (0.5 kN / 110 lbf, PC-driven)

Tension & compression

Tension & compression loadcells:

ELS: 8 models, from 2 - 500 N

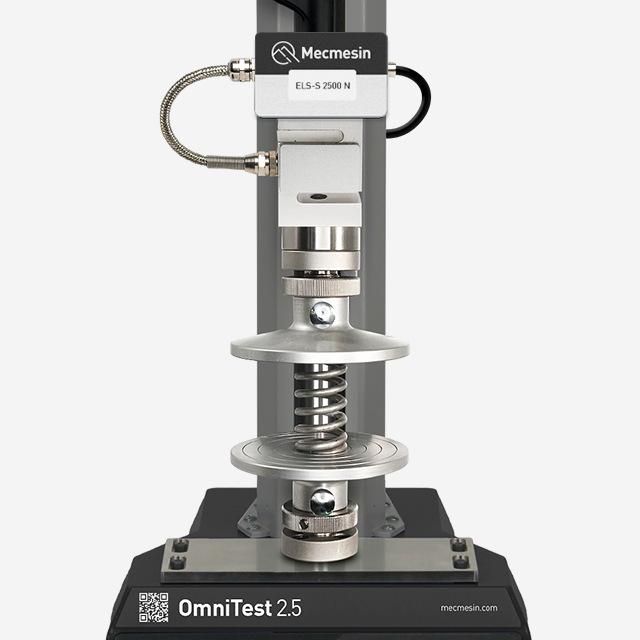

ELS-S: 7 models, from 100 - 7500 N

Accuracy: When calibrated as part of a system, accuracy is ±0.5% of reading down to 2% of range, suitable for use with Class 0.5 systems according to the requirements of ISO 7500-1. Eg, ELS 100 when measuring 10N is accurate to ± 0.05 N or when measuring 50N it is accurate to ± 0.25 N.

Resolution1: 1:50,000 filtered from 24 bit

Units of measurement: mN, daN, N, kN, gf, kgf, ozf, lbf

Sampling rate: 20 kHz

Data-acquisition rate: 1000 Hz

Displacement

Maximum crosshead travel (between limit switches): 1186 mm (47")

Accuracy: ±0.13mm per 300mm travel; ±0,005" per 11,8" travel

Resolution: 0.001mm (0.00004")

Speed

Range: 0.01 - 1200 mm/min (0.0004 - 47.2"/min)
Accuracy: Better than ±2% of indicated speed or ± 0.02 mm/min (20 µm/min), whichever is greater* * See help.mecmesin.com for additional info

Resolution: 0.001 mm/min (0.0004"/min)

Dimensions:

Headroom/vertical daylight (vertical space to fit sample): 1205 mm (47")
Throat depth (column to centre-line of loadcell): 70.5 mm (2.6")

Height: 1616 mm (64")

Width: 290 mm (11.4")

Depth: 414 mm (16.3")

Weight: 31 kg (68 lbs)

Common specifications

Voltage: 230V AC 50 Hz or 110V AC 60 Hz

Power (max): 120 - 250W

Operating temperature: 10 - 40°C (50 - 104°F)

Humidity range: Normal industry and laboratory conditions, non-condensing 30 - 80% RH
