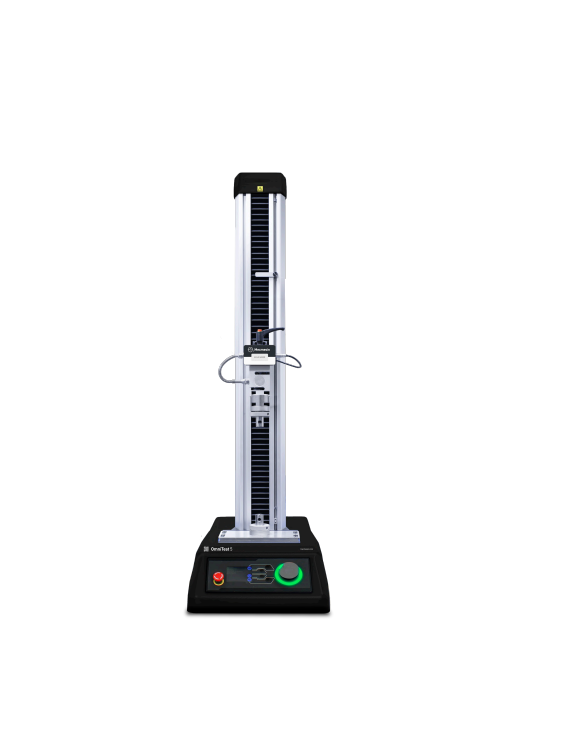

Mecmesin OmniTest 5 Universal testing machine (5 kN / 1100 lbf, PC-driven)
Manufacturer: Mecmesin Model: OmniTest 5 P/N: 820-005 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Tension & compression
Loadcells:
ELS: 8 models, from 2 N - 500 N
ELS-S: 7 models, from 100 N - 7500 N
Accuracy: When calibrated as part of a system, accuracy is ±0.5% of reading down to 2% of range, suitable for use with Class 0.5 systems according to the requirements of ISO 7500-1. Eg, ELS 100 when measuring 10N is accurate to ± 0.05 N or when measuring 50N it is accurate to ± 0.25 N.
Resolution: 1:50,000 filtered from 24 bit
Units of measurement: mN, daN, N, kN, gf, kgf, ozf, lbf
Sampling rate: 20 kHz
Data-acquisition rate: 1000 Hz
Displacement
Maximum crosshead travel (between limit switches): 650 mm (25.6'')
Accuracy: ±0.1% of indicated position or ± 0.01mm, whichever is greatest
Resolution: 0.001mm (0.00004")
Speed
Range0.01 - 1200 mm/min (0.0004 - 47.2"/min)
Accuracy: Better than ±2% of indicated speed or ± 0.02 mm/min, whichever is greater* See help.mecmesin.com for additional info
Resolution0.001 mm/min (0.0004"/min)
Dimension
Headroom/vertical daylight (vertical space to fit sample): 750 mm (30")
Throat depth (column to centre-line of loadcell): 125 mm (4.9'')
Height: 1089 (43'')
Width: 330 mm (13'')
Depth: 570 mm (22.5'')
Weight: 70 kg (155 lbs)
Common specifications
Voltage: 230V AC 50 Hz or 110V AC 60 Hz
Power (max): 120 - 250W
Operating temperature: 10 - 40°C (50 - 104°F)
Humidity range: Normal industry and laboratory conditions, non-condensing 30 - 80% RH
