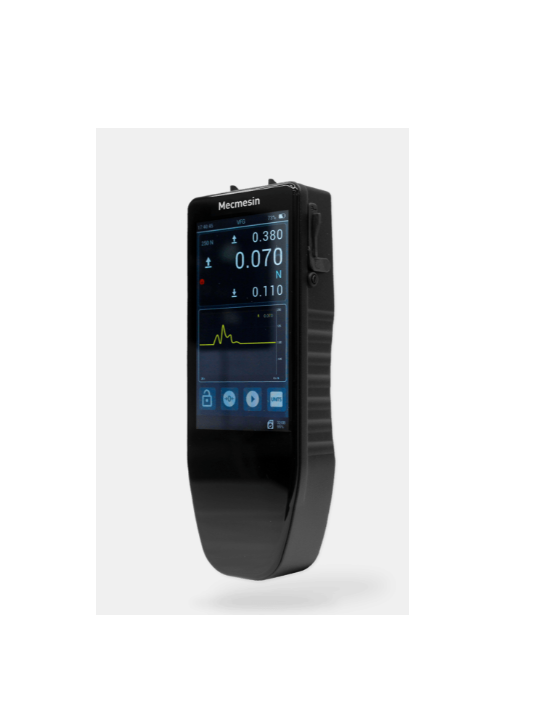

Mecmesin VFG 100 Touchscreen digital force gauge (100 N / 22 lbf / 10 kgf)

Tension and Compression

Measurement range

VFG 100: 100 N / 22 lbf / 10 kgf

Resolution: 1:50,000 eg. VFG 500 when measuring in newtons has a resolution of 0.01 N

Accuracy: ±0.1 % of full scale*

eg. VFG 500 has a full-scale capacity of 500 so is accurate to ± 0.5 N at any point between 0 - 500 N

Units of measurement: N, N, kN, gf, kgf, ozf, lbf

Sampling Rate: 5,000,000 Hz

Overload Rating: 150% of full scale

Storage:

On-board/built-in memory8 MB (approx. 500 stored readings)

Expandable memory: Up to 32 GB (via SDHC card)

Dimensions

*As the device is used in varying environmental conditions, the uncertainty of measurement could be as much as 0.1% of full scale.

Width: 72 mm

Height: 205 mm

Depth: 42 mm

Weight: 740g
