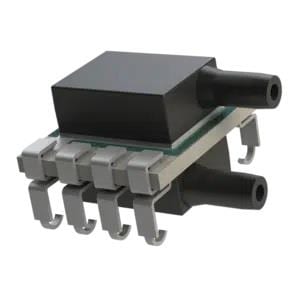

Merit Sensor 1420-P15D-1011-111 Board Mount Pressure Sensors Low pressure, surface mount, 4 inH2O/0.15 psid, digital I2C, +/-1.5% accuracy
Manufacturer: Merit Sensor Model: 1420-P15D-1011-111 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Accuracy: 1.5 %
Port Size: 2.2 mm x 3.8 mm
Port Type: Dual Radial Barbless
Resolution: 13 bit
Output Type: Digital
Pressure Type: Differential
Interface Type: I2C
Mounting Style: SMD/SMT
Operating Pressure: 0.15 psi
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Operating Supply Current: 2 mA
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
