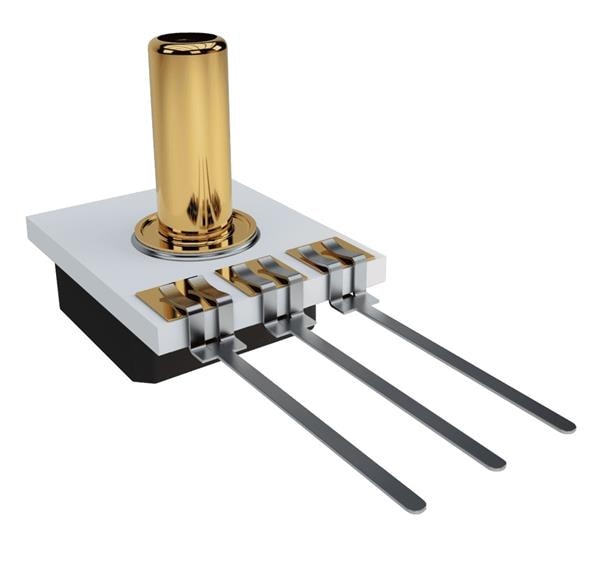

Merit Sensor TR1-0500G-111 Transducers Designed for harsh media and high temperature, 500 psig, radial seal, straight pins, analog out 0.5-4.5 V, +/-2.5% accuracy
Manufacturer: Merit Sensor Model: TR1-0500G-111 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 10.3 mm
Length: 12.8 mm
Accuracy: 2.5 %
Port Size: 8.6 mm x 3.1 mm
Output Type: Analog
Pressure Port: Port
Pressure Type: Gauge
Qualification: AEC-Q100
Mounting Style: Through Hole
Operating Pressure: 500 psi
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Operating Supply Current: 10 mA
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 40 C
