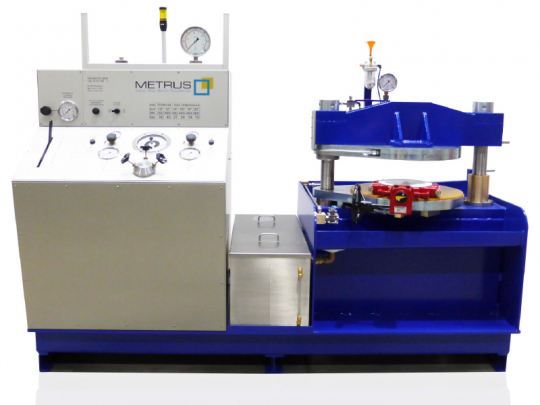

METRUS BV 36/800 Test Bench for Butterfly Valves (80tons, 500mm)
Manufacturer: METRUS Model: BV 36/800 Origin: Germany Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Clamping unit for butterfly valves up to DN 500/20”
Hydraulic clamping force up to 80 tons
Safety interlock system while valve is under pressure
Max. test pressure at DN 500/20” up to 15 bar
High pressure water test up to 60 bar from bottom side
Low pressure air test up to 6 bar from bottom side
METRUS Precision valves
Anodized, chemical resistant front panel
Stainless steel control cabinet
Closed water cycle
Piping and fittings in stainless steel
Visual seat leakage contol from the top
Options:
External testing adapter - for testing valves bigger than DN 500/20’’ beside the calmping unit
Gauge turret for 4 + 1 gauges
Safety pressure limitation system
CRS - Computer-Registration-System with swivel mounted panel PC
