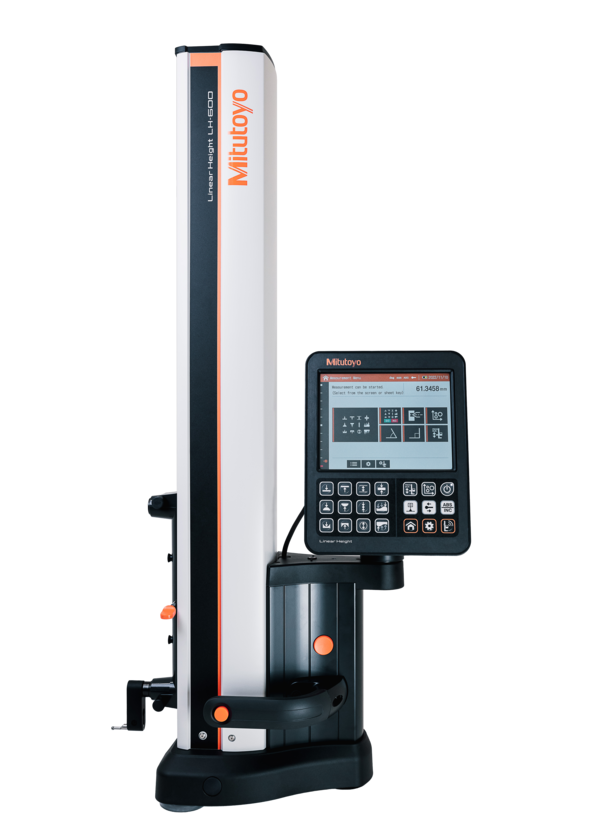

MITUTOYO 518-361-13 High-Accuracy Height Gage (0-600mm)

Digital/Analog: Digital

Interface: Digimatic S1 bidirectional (for wireless data transmission, Digimatic data transmission), RS-232C (for receipt printer), USB-B (for PC), UAB-A (for memory stick)

Range: 0-977 mm

Slider stroke: 600 mm

Digital step: 0.0001/ 0.001/ 0.01/ 0.1 mm (selectable), 0.000001/ 0.00001/ 0.0001/ 0.001" (selectable)

Accuracy: ±(1.1 + 0.6L/600) µm L = length (mm)

Perpendicularity: 5 µm (after compensation)

Straightness: 4 µm (mechanical)

Repeatability: (2σ) Plane: 0.4 µm

                       (2σ) Bore: 0.9 µm

Air floating: Full-floating (for moving), semi floating (for scanning measurement)

Remarks: With power grip

Mass: 26.6 kg

Balancing method: Counterbalance

Drive method: Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 steps) / manual

Sliding method: Rolling bearing

Slider balance adjustment method: Manual adjustment by adding/removing auxiliary weights

Scale: Photoelectric INC encoder, STVC-20Z (8.1x10-6/K)

Display: 8.4" SVGA touch screen (800x600 dot, LED, with back lightning)

Adjustment range of display unit orientation: Tilt direction: 0-40°, swivel direction: -30-180°

Power supply: AC adapter 100-240V, 50/60Hz / battery (Ni-MH)

Battery operation time: Approx. 4 hours

Battery charging time: Appr. 3,5 h

Power consumption: Max. 49.9 W

Number of stored part programs: 50

Preventive maintenance function: Scale status notification, calibration status notification

Operating humidity: 20-80% RH (no condensation)

Airborne noise: 70dB(A)

Inch-Metric: Metric/Inch
