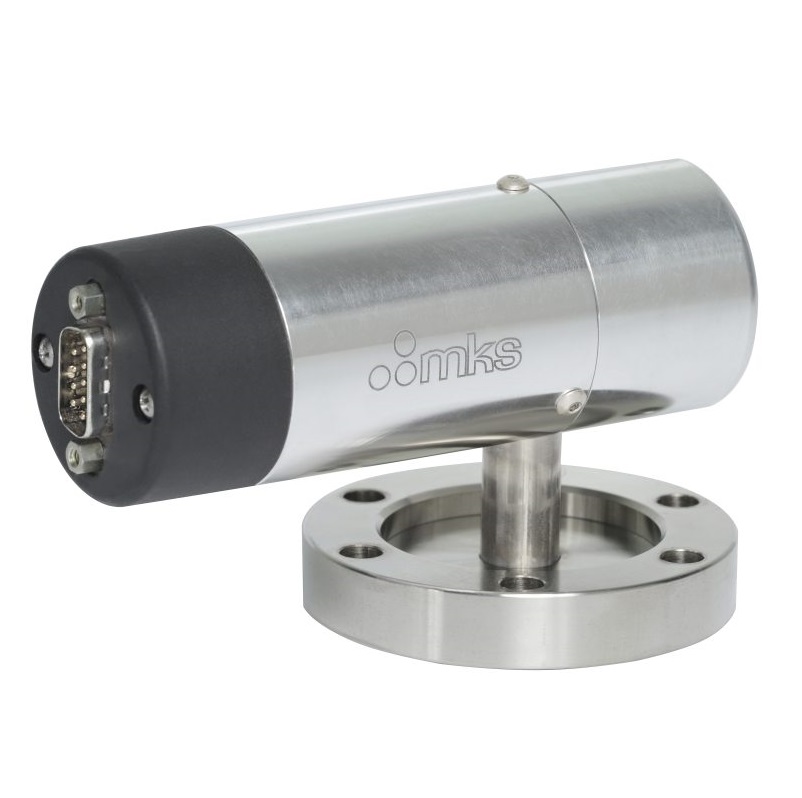

MKS 317 Convection-Enhanced Pirani Vacuum Pressure Sensors (0.001-1000Torr; 4VCR Female)
Manufacturer: MKS Model: 317 P/N: 103170029SH - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Measurement Range: 1.0 x 10-3 to 1.0 x 10+3 Torr
1.3 x 10-3 to 1.3 x 10+3 mbar
1.3 x 10-1 to 1.3 x 10+5 Pascal
Set Point Range: 2.0 x 10-3 - 9.5 x 10+2 Torr
2.7 x 10-3 - 1.2 x 10+3 mbar
2.7 x 10-1 - 1.2 x 10+5 Pascal
Resolution: 1% of indicated decade
Reproducibility: 5% of indicated pressure
Fitting Type: 4 VCR female
Connector: 9-pin D-sub
Operating Temperature: 0 - 50°C (32 - 122°F)
Bake Out Temperature: 100°C non-operating without cable and electronics
Exposed Materials: 304 stainless steel, nickel 200, glass, platinum
Internal Volume: 0.5 in3 (8.0 cm3) max.
Cable: Multiconductor shielded cable
