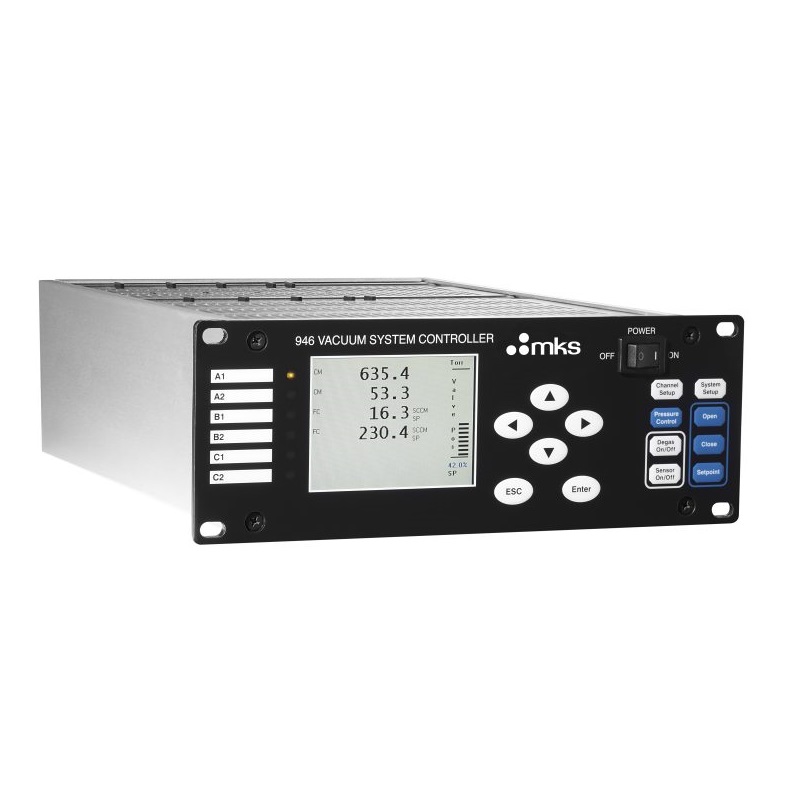

MKS 946 Vacuum System Controller (6-CH; 10.000~10^-11 Torr)
Manufacturer: MKS Model: 946 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Measurement Range: 10,000 Torr to 10-11 Torr (Dependent upon sensor type)
Display: 320x240 color QVGA TFT LCD with back lighting
Front Panel Controls: Power on-off switch, setup and operational commands can be accessed via the keypad
Units: Pressure: Torr, mbar, Pascal
Flow: sccm and slm
Power Requirements:100 - 240 VAC 50/60 Hz 150 W maximum
Analog Output: Buffered, log linear and linear output for each channel and log linear for combined channels
Set Point Contact Rating: 2 amps @ 30 VAC
Set Point Configuration: Twelve pressure dependent SPST set point relays
Operating Temperature: 5° to 40°C (41° to 104°F)
Storage Temperature: 10° to 55°C (50° to 131°F)
Mounting: 1/2 rack, 2U High, 13 inches deep
Weight: 8 lbs. (3.6 kg)
Compliance: CE
For specific range please check the attachment below!
