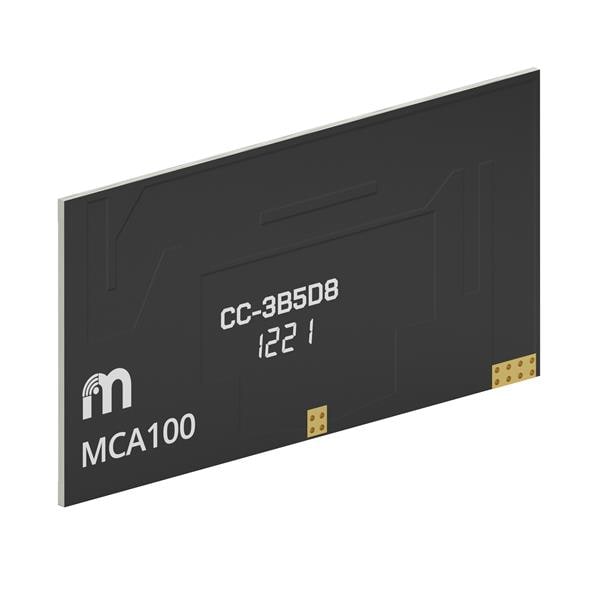

Mobix Labs MCA100 Passive Antenna Ultra Wideband Antenna 617 MHz - 7.125 GHz
Manufacturer: Mobix Labs Model: MCA100 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Gain: 0.03 dBi to 5.3 dBi
VSWR: 3
Style: Ceramic
Width: 25.5 mm
Height: 0.852 mm
Length: 49 mm
Bandwidth: 6.508 GHz
Frequency: 617 MHz to 7.125 GHz
IP Rating: IP68
Impedance: 50 Ohms
Application: Access Points, Routers, Gateways, Set Top Box, Multi-band Equipment, Appliances, Wireless Devices
Power Rating: 2 W
Qualification: AEC-Q200
Mounting Style: PCB Mount
Frequency Range: 617 MHz to 7.125 GHz
Number of Bands: 1 Band
Center Frequency: 617 MHz, 915 MHz, 2.45 GHz, 5.5 GHz, 6 GHz, 7 GHz
Mechanical Style: Chip
Maximum Frequency: 7.125 GHz
Minimum Frequency: 617 MHz
Termination Style: SMD/SMT
Moisture Sensitive: Yes
Protocol - Sub GHz: ISM
Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS
Protocol - WiFi - 802.11: ISM, ANT, WiFi, WiFi 802.11, WLAN, WiFi 6, WiFi 6E, WiMAX, WHDMI
Maximum Operating Temperature: + 75 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DSRC
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
