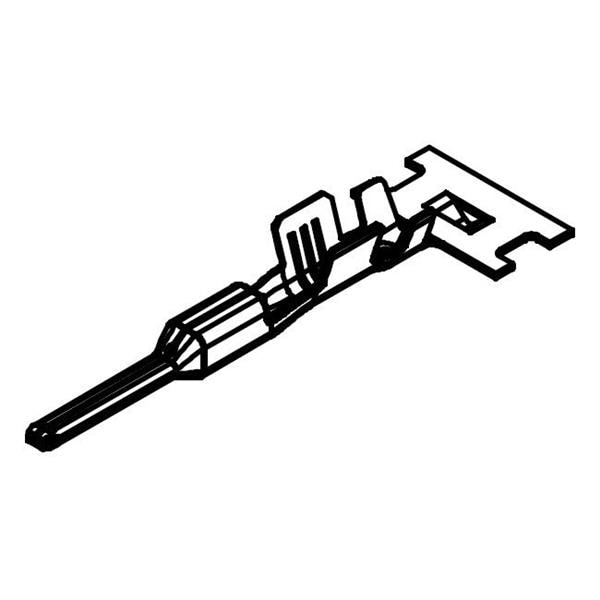

Molex 33011-1008 Terminals MX150 BLD TERM GOLD M3 B WIND
Manufacturer: Molex Model: 33011-1008 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Gender: Pin (Male)
Features: Grip Code M3, Right Reel Payoff
Application: Power
Unit Weight: 377 mg
Contact Type: Pin
Contact Gender: Pin (Male)
Current Rating: 22 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 14 VDC
Wire Gauge Max: 20 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Gold
Contact Material: High Performance Alloy (HPA)
Wire Gauge Range: 22 AWG to 20 AWG
Termination Style: Crimp
Description/Function: MX150 Male Terminal for Mat-Sealed or Unsealed Connectors
