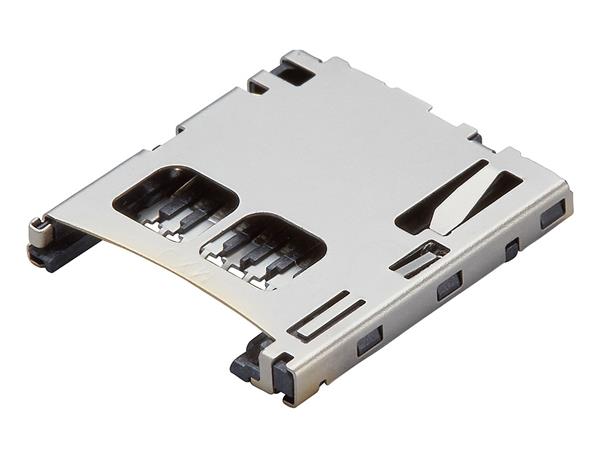

Molex 502570-0893 - MICRO SD CARD CONN NORM SMT PUSH-PUSH
Manufacturer: Molex Model: 502570-0893 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Color: Black
Pitch: 1.1 mm
Height: 1.8 mm
Card Type: microSD
Orientation: Right Angle
Unit Weight: 470 mg
Mounting Type: Standard
Current Rating: 500 mA
Mounting Style: PCB Mount
Number of Rows: 1 Row
Voltage Rating: 10 VAC/DC
Contact Plating: Gold
Termination Style: SMD/SMT
Number of Contacts: 8 Contact
Insertion - Extraction Style: Push-Push
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
